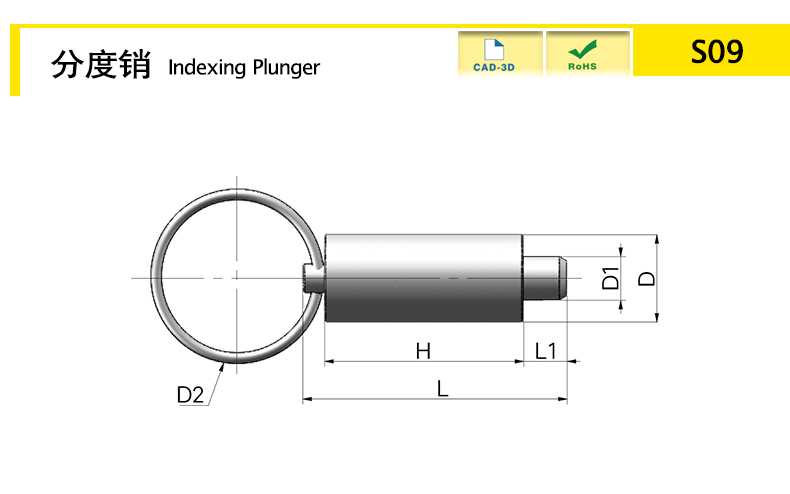

Product size diagram
Product size and properties
| Model Number | Material  | D1 | Length L | Handle Diameter D | L1 | L2 | F | T | M | K | D2 | S | Height | S1 | S2 | T1 | M1 | C | A | D3 | B | Maximum load (N) | Weight (g) |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S09B | SUS304 | 6 | 37 | 12 | 6 | / | / | / | / | / | 24 | / | 36 | / | / | / | / | / | / | / | / | / | / |
 |
| S09-S | Carbon Steel | 6 | 37 | 12 | 6 | / | / | / | / | / | 24 | / | 36 | / | / | / | / | / | / | / | / | / | / |
|
characteristic
Easy to installation
S：Zinc-plated
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Pull Ring Index Plunger
Pull Ring Index Plunger
More information
If you have more technical advice，Please call0535-6217008-801
