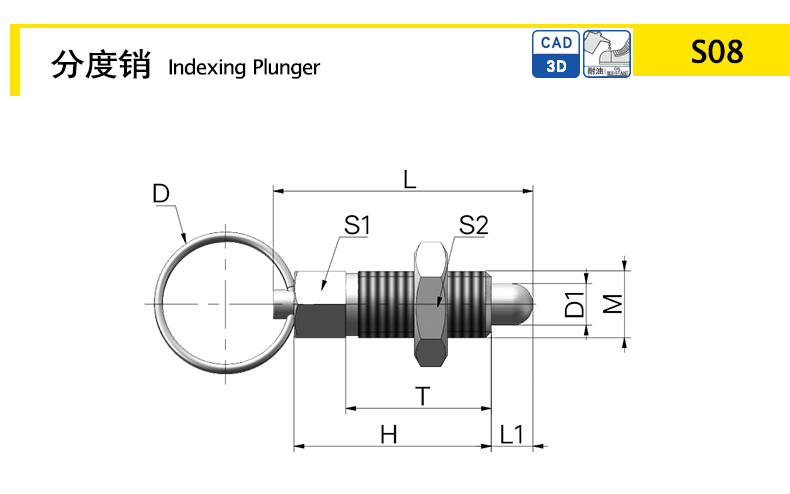

Product size diagram
Product size and properties
| Model Number | Material  | D1 | Length L | Handle Diameter D | L1 | L2 | F | T | M | K | D2 | S | Height | S1 | S2 | T1 | M1 | C | A | D3 | B | Maximum load (N) | Weight (g) |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S08-4-S | Carbon Steel | 4 | 20.5 | 14 | 4 | / | / | 12 | M6 | / | / | / | 16.5 | 4.5 | / | / | / | / | / | / | / | 13 | 6 | |
| S08B-4 | SUS304 | 4 | 20.5 | 14 | 4 | / | / | 12 | M6 | / | / | / | 16.5 | 4.5 | / | / | / | / | / | / | / | 13 | 6 | |
| S08-5-S | Carbon Steel | 5 | 27 | 18 | 5 | / | / | 16 | M8 | / | / | / | 22 | 6 | / | / | / | / | / | / | / | 25 | 10 |
 |
| S08B-5 | SUS304 | 5 | 27 | 18 | 5 | / | / | 16 | M8 | / | / | / | 22 | 6 | / | / | / | / | / | / | / | 25 | 10 |
|
| S08-6-S | Carbon Steel | 6 | 33.5 | 24 | 6 | / | / | 20 | M10 | / | / | / | 27.5 | 7.5 | / | / | / | / | / | / | / | 22 | 23 | |
| S08B-6 | SUS304 | 6 | 33.5 | 24 | 6 | / | / | 20 | M10 | / | / | / | 27.5 | 7.5 | / | / | / | / | / | / | / | 22 | 23 | |
| S08-8-S | Carbon Steel | 8 | 41 | 30 | 8 | / | / | 24 | M12 | / | / | / | 33 | 9 | / | / | / | / | / | / | / | 24 | 40 | |
| S08B-8 | SUS304 | 8 | 41 | 30 | 8 | / | / | 24 | M12 | / | / | / | 33 | 9 | / | / | / | / | / | / | / | 24 | 40 |
characteristic
with pull ring and lock nut
Available services
1. Non-standard , Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Pull Ring Index Plunger
Pull Ring Index Plunger
More information
If you have more technical advice，Please call0535-6217008-801
