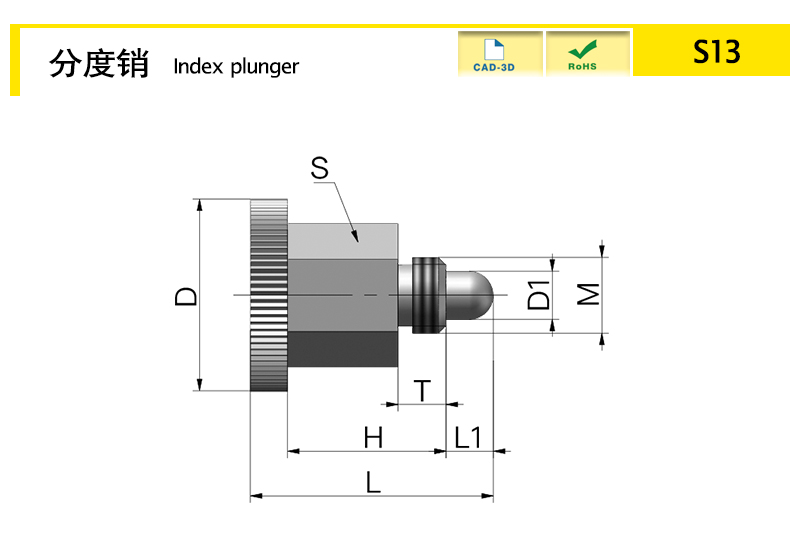

Product size diagram
Product size and properties
| Model Number | Material  | D1 | Length L | Handle Diameter D | L1 | L2 | F | T | M | K | D2 | S | Height | S1 | S2 | T1 | M1 | C | A | D3 | B | Maximum load (N) | Weight (g) |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S13-6-B | Carbon Steel | 6 | 34 | 25 | 7 | / | / | 7 | M10*1 | / | / | 12 | / | / | / | / | / | / | / | / | / | 20 | 25 | |
| S13-5-B | Carbon Steel | 5 | 26.5 | 21 | 5 | / | / | 5 | M8*0.75 | / | / | 10 | / | / | / | / | / | / | / | / | / | 14 | 15 |
 |
characteristic
Push / pull knurled handle,high elasticity,Polyamide (PA).The nut part is black oxidized finish.
Compact and small sized index plunger,Suitable for metal sheet assembling
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging.
Product Name
Mini Index Plunger Without Stop
Mini Index Plunger Without Stop
More information
If you have more technical advice，Please call0535-6217008-801
Product Classification
