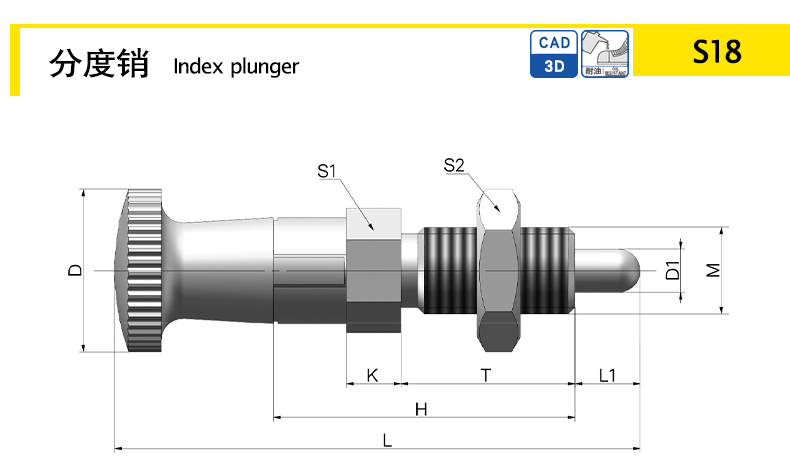

Product size diagram
Product size and properties
| Model Number | Material  | D1 | Length L | Handle Diameter D | L1 | L2 | F | T | M | K | D2 | S | Height | S1 | S2 | T1 | M1 | C | A | D3 | B | Maximum load (N) | Weight (g) |

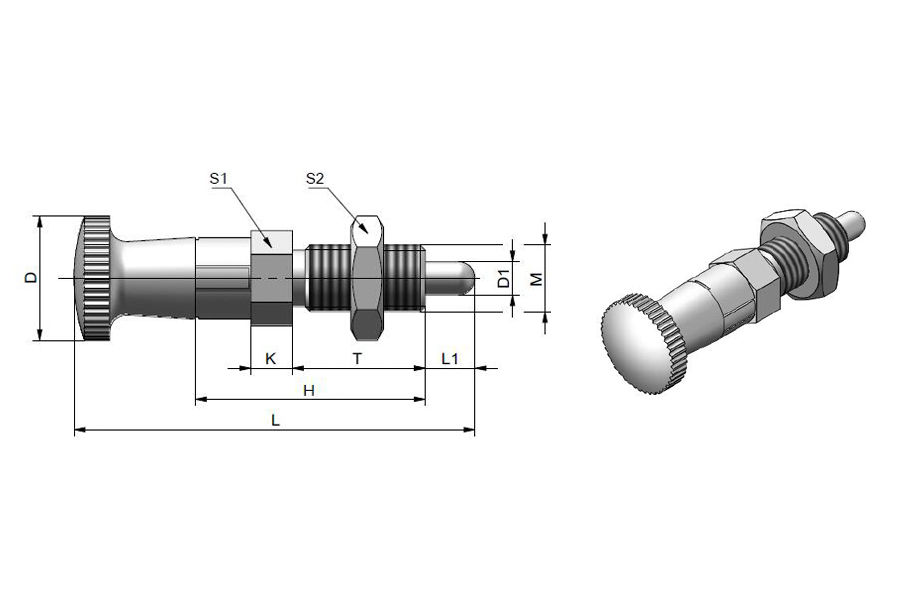

3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S18-4-B | Carbon Steel | 4 | 46 | 16 | 4 | / | / | 16 | M8*1 | 5 | / | / | / | 10 | 13 | / | / | / | / | / | / | 14 | 20 |
 |
| S18B-4 | SUS304 | 4 | 46 | 16 | 4 | / | / | 16 | M8*1 | 5 | / | / | / | 10 | 13 | / | / | / | / | / | / | 14 | 20 |
|
| S18-5-B | Carbon Steel | 5 | 54 | 19 | 5 | / | / | 18 | M10*1 | 6 | / | / | / | 12 | 17 | / | / | / | / | / | / | 16 | 30 | |
| S18B-5 | SUS304 | 5 | 54 | 19 | 5 | / | / | 18 | M10*1 | 6 | / | / | / | 12 | 17 | / | / | / | / | / | / | 16 | 30 | |
| S18-6-B | Carbon Steel | 6 | 64 | 23 | 6 | / | / | 22 | M12*1.5 | 6 | / | / | / | 14 | 18 | / | / | / | / | / | / | 20 | 45 | |
| S18B-6 | SUS304 | 6 | 64 | 23 | 6 | / | / | 22 | M12*1.5 | 6 | / | / | / | 14 | 18 | / | / | / | / | / | / | 20 | 45 | |
| S18-8-B | Carbon Steel | 8 | 78 | 28 | 8 | / | / | 26 | M16*1.5 | 8 | / | / | / | 17 | 24 | / | / | / | / | / | / | 25 | 90 | |
| S18B-8 | SUS304 | 8 | 78 | 28 | 8 | / | / | 26 | M16*1.5 | 8 | / | / | / | 17 | 24 | / | / | / | / | / | / | 25 | 90 |
characteristic
S:Carbon steel with zinc plated finish
B:Carbon steel withblack oxide finish
Locking mechanism located inside knob.
Available services
1. Non-standard ,Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging.
