Heavy Duty Andle Clamp

QT Series

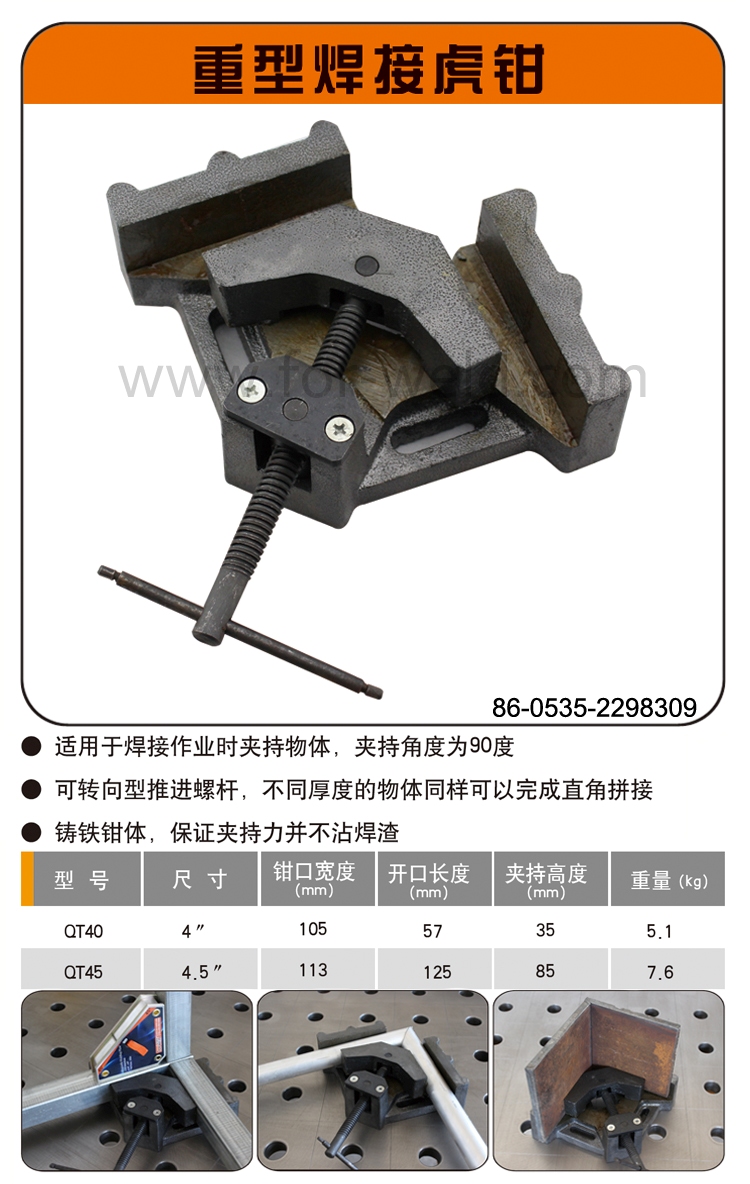

Heavy Duty Andle Clamp

Cast iron

application:Clamp object during welding operation,clamping angle is 90 degrees

catalogue CAD data

Product size diagram
Product size and properties
Model Number Weight(kg) bottomMax Attraction(kg) bottomDimensions(mm) bottomColor bottomMaterial bottomWidth of jaw(mm) bottomOpening length(mm) bottomClamping height(mm) bottomMax Clampping Force(kg) bottomClamping Force(kg) bottomFunction bottom 3D DRAWINGS
QT40 5.1 / / / / 105 57 35 / / Angle positioning
QT45 7.6 / / / / 113 125 85 / / Angle positioning
characteristic

Steering propeller screw,Suitable for different thickness object

Cast iron clamp body,ensure the clamping force does not touch welding slag
