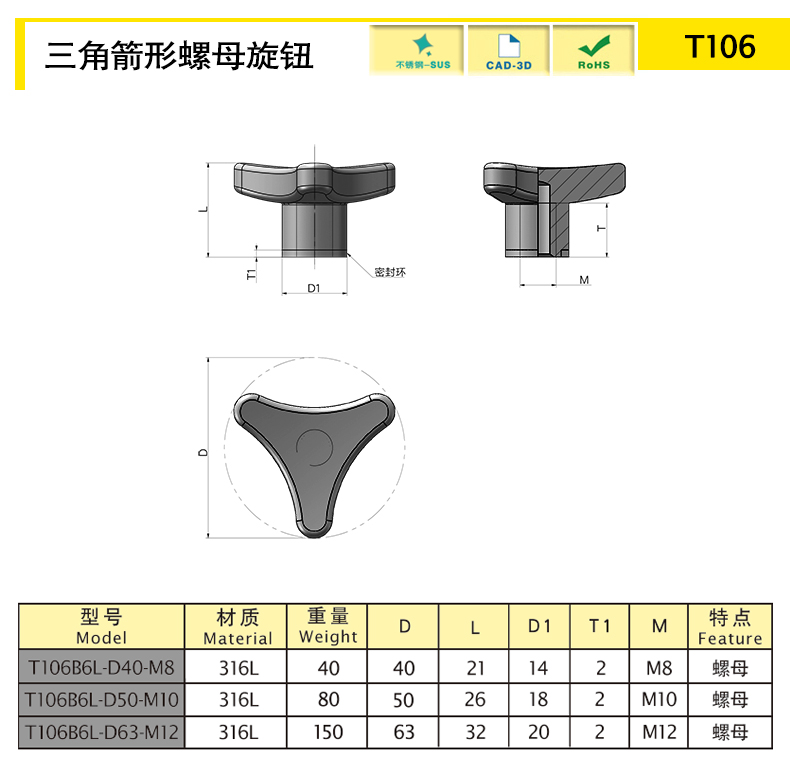

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T106B6L-D40-M8 | 316L | 40 | 21 | 14 | M8 | 12 | / | 2 | / | / | / | / | Nut | / | 40 | / | / | / | / | / |
 |
| T106B6L-D50-M10 | 316L | 50 | 26 | 18 | M10 | 15 | / | 2 | / | / | / | / | Nut | / | 80 | / | / | / | / | / |
|
| T106B6L-D63-M12 | 316L | 63 | 32 | 20 | M12 | 18 | / | 2 | / | / | / | / | Nut | / | 150 | / | / | / | / | / |
|
characteristic
Can be used in clean areas and dust-free environments. The assembly surface is equipped with sealing washers, and there are no sanitary dead corners after installation in place. A larger rounded radius and sealing washer can prevent dust from adhering and facilitate cleaning.
Sealing gasket EPDM (EPDM rubber) can withstand the temperature up to -30 ° C~+120 ° C
Sealing gasket EPDM (EPDM rubber) can withstand the temperature up to -30 ° C~+120 ° C
Available services
Product Name
Three-arm Nut Knob
Three-arm Nut Knob
