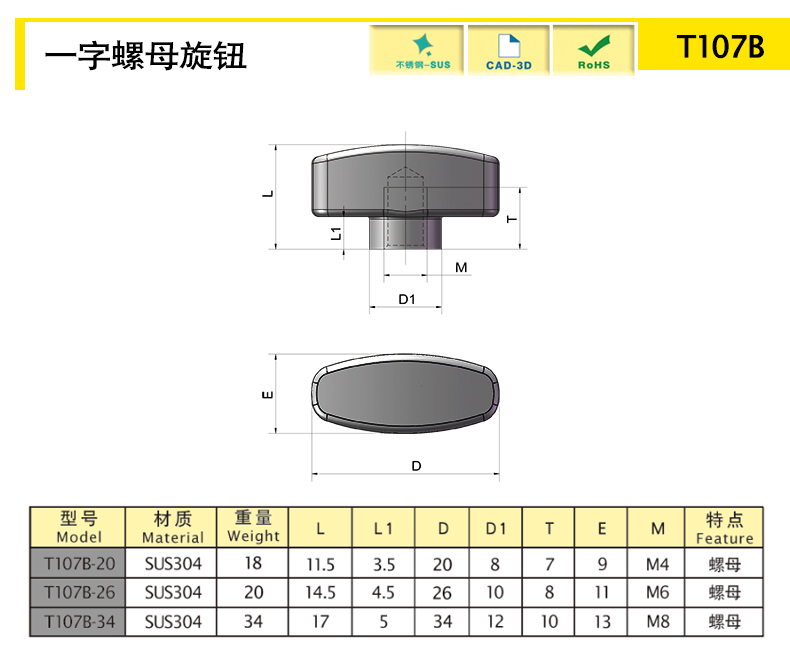

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T107B-20 | 304 | 20 | 11.5 | 8 | M4 | 7 | / | / | / | / | / | 9 | Nut | 3.5 | 18 | / | / | / | / | / |
 |
| T107B-26 | 304 | 26 | 14.5 | 10 | M6 | 8 | / | / | / | / | / | 11 | Nut | 4.5 | 20 | / | / | / | / | / |
|
| T107B-34 | 304 | 34 | 17 | 12 | M8 | 10 | / | / | / | / | / | 13 | Nut | 5 | 34 | / | / | / | / | / |
|
characteristic
Stainless steel has good corrosion resistance，under special sanitary climate and environmental conditions or in the environment where the law requires the use of corrosion-resistant materials.
Available services
Product Name
Wing Nut Knob
Wing Nut Knob
More information
If you have more technical advice，Please call0535-6217008-801
