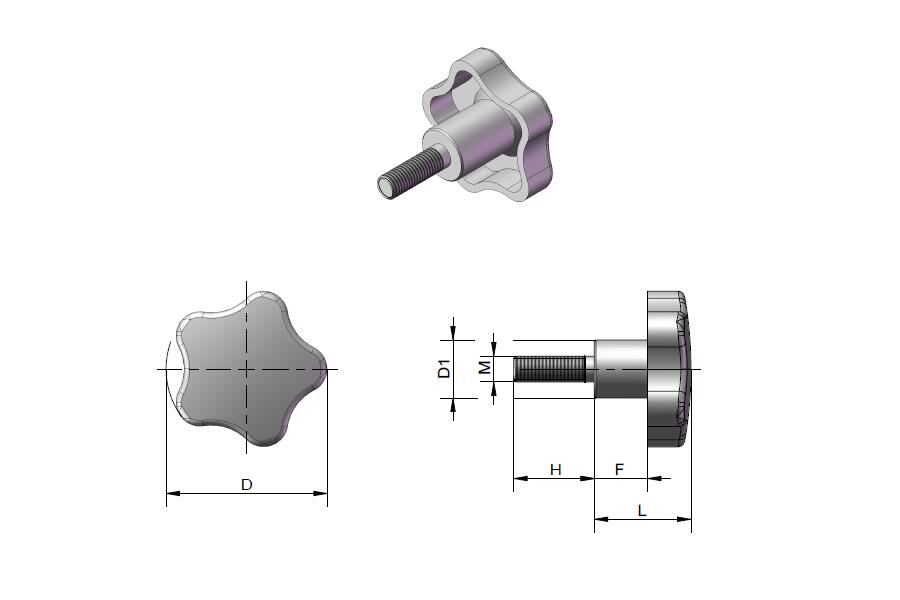

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T55-40-M8*20 | SUS304 | 40 | 24 | 14 | M8 | / | / | / | 12 | 20 | / | / | Screw | / | 51 | / | / | / | / | / |
 |
| T55-40-M8*30 | SUS304 | 40 | 24 | 14 | M8 | / | / | / | 12 | 30 | / | / | Screw | / | 56 | / | / | / | / | / | |
| T55-40-M8*40 | SUS304 | 40 | 24 | 14 | M8 | / | / | / | 12 | 40 | / | / | Screw | / | 57 | / | / | / | / | / | |
| T55-50-M10*20 | SUS304 | 50 | 30 | 18 | M10 | / | / | / | 16.5 | 20 | / | / | Screw | / | 96 | / | / | / | / | / |
|
| T55-50-M10*30 | SUS304 | 50 | 30 | 18 | M10 | / | / | / | 16.5 | 30 | / | / | Screw | / | 98 | / | / | / | / | / |
|
| T55-50-M10*40 | SUS304 | 50 | 30 | 18 | M10 | / | / | / | 16.5 | 40 | / | / | Screw | / | 101 | / | / | / | / | / | |
| T55-60-M12*30 | SUS304 | 60 | 37.5 | 20 | M12 | / | / | / | 20 | 30 | / | / | Screw | / | 156 | / | / | / | / | / |
|
| T55-60-M12*40 | SUS304 | 60 | 37.5 | 20 | M12 | / | / | / | 20 | 40 | / | / | Screw | / | 163 | / | / | / | / | / | |
| T55-60-M12*50 | SUS304 | 60 | 37.5 | 20 | M12 | / | / | / | 20 | 50 | / | / | Screw | / | 170 | / | / | / | / | / |
characteristic
SUS304 stainless steel, matte finish
Assembly: SUS304 stainless steel butt welding hub
stainless steel with screw rod has corrosion resistance, under special sanitary climate and environmental conditions or in the environment where the law requires the use of corrosion-resistant materials
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

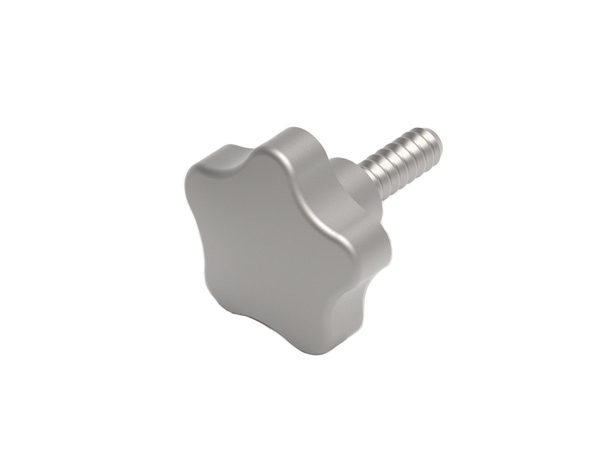

Five Star Bolt Knob
Five Star Bolt Knob
More information
If you have more technical advice，Please call0535-6217008-801
