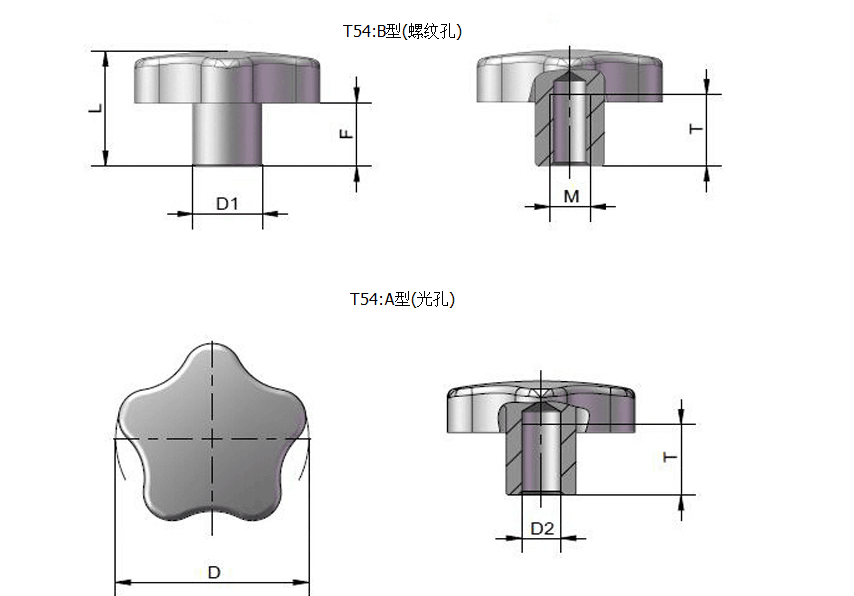

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T54-40-M8-B | SUS304 | 40 | 24 | 14 | M8 | 15 | / | / | 12 | / | / | / | Nut | / | 35 | / | / | / | / | / | |
| T54-50-M10-B | SUS304 | 50 | 30 | 18 | M10 | 18 | / | / | 16.5 | / | / | / | Nut | / | 66 | / | / | / | / | / |
 |
| T54-50-10-A | SUS304 | 50 | 30 | 18 | / | 18 | 10 | / | 16.5 | / | / | / | Nut | / | 65 | / | / | / | / | / |
|
| T54-60-M12-B | SUS304 | 60 | 37.5 | 20 | M12 | 22 | / | / | 20 | / | / | / | Nut | / | 108 | / | / | / | / | / | |
| T54-60-12-A | SUS304 | 60 | 37.5 | 20 | / | 22 | 12 | / | 20 | / | / | / | Nut | / | 106 | / | / | / | / | / | |
| T54-40-8-A | SUS304 | 40 | 24 | 14 | / | 15 | 8 | / | 12 | / | / | / | Nut | / | 35 | / | / | / | / | / |
characteristic
SUS304 stainless steel, matte finish
Assembly method:
Type A: with butt welding hub and standard H7 hinge blind hole
Type B: with butt weld hub and threaded hole
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

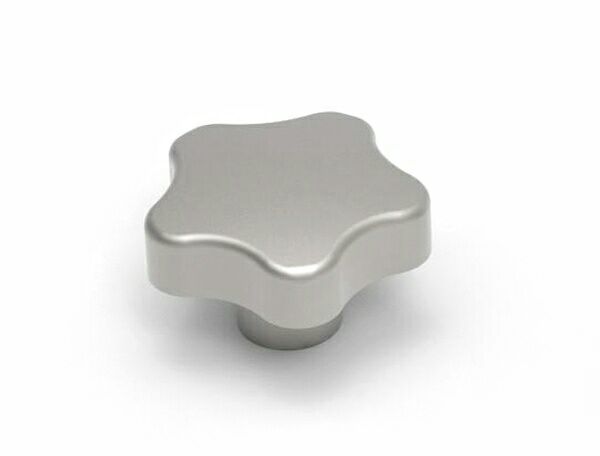

Five Star Nut Knob
Five Star Nut Knob
