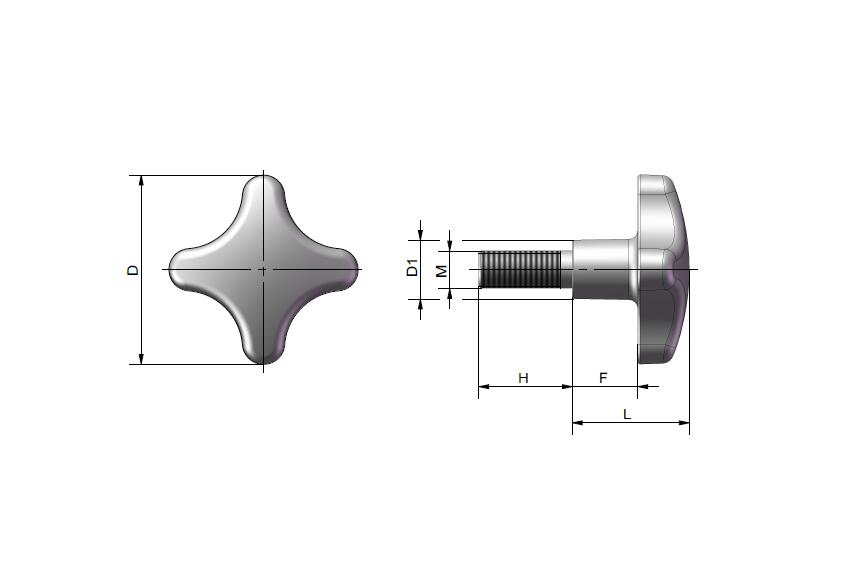

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T57-40-M8*20-M | SUS304 | 40 | 25 | 14 | M8 | / | / | / | 14 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-40-M8*20-S | SUS304 | 40 | 25 | 14 | M8 | / | / | / | 14 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-40-M8*30-M | SUS304 | 40 | 25 | 14 | M8 | / | / | / | 14 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-40-M8*30-S | SUS304 | 40 | 25 | 14 | M8 | / | / | / | 14 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-40-M8*40-M | SUS304 | 40 | 25 | 14 | M8 | / | / | / | 14 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-40-M8*40-S | SUS304 | 40 | 25 | 14 | M8 | / | / | / | 14 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-50-M10*20-M | SUS304 | 50 | 32 | 18 | M10 | / | / | / | 20 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-50-M10*20-S | SUS304 | 50 | 32 | 18 | M10 | / | / | / | 20 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-50-M10*30-M | SUS304 | 50 | 32 | 18 | M10 | / | / | / | 20 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-50-M10*30-S | SUS304 | 50 | 32 | 18 | M10 | / | / | / | 20 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-50-M10*40-M | SUS304 | 50 | 32 | 18 | M10 | / | / | / | 20 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-50-M10*40-S | SUS304 | 50 | 32 | 18 | M10 | / | / | / | 20 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-63-M12*30-M | SUS304 | 63 | 40 | 20 | M12 | / | / | / | 25 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-63-M12*30-S | SUS304 | 63 | 40 | 20 | M12 | / | / | / | 25 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-63-M12*40-M | SUS304 | 63 | 40 | 20 | M12 | / | / | / | 25 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-63-M12*40-S | SUS304 | 63 | 40 | 20 | M12 | / | / | / | 25 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-63-M12*50-M | SUS304 | 63 | 40 | 20 | M12 | / | / | / | 25 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-63-M12*50-S | SUS304 | 63 | 40 | 20 | M12 | / | / | / | 25 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-80-M16*30-M | SUS304 | 80 | 50 | 25 | M16 | / | / | / | 30 | 30 | / | / | Screw | / | / | / | / | / | / | / |
 |
| T57-80-M16*30-S | SUS304 | 80 | 50 | 25 | M16 | / | / | / | 30 | 30 | / | / | Screw | / | / | / | / | / | / | / |
|
| T57-80-M16*50-M | SUS304 | 80 | 50 | 25 | M16 | / | / | / | 30 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-80-M16*50-S | SUS304 | 80 | 50 | 25 | M16 | / | / | / | 30 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-80-M16*60-M | SUS304 | 80 | 50 | 25 | M16 | / | / | / | 30 | 60 | / | / | Screw | / | / | / | / | / | / | / | |
| T57-80-M16*60-S | SUS304 | 80 | 50 | 25 | M16 | / | / | / | 30 | 60 | / | / | Screw | / | / | / | / | / | / | / |
characteristic
SUS304 stainless steel casting,
Type M: bright finish (mirror)
Type S: matt finish (sandblasting)
stainless steel has corrosion resistance, under special sanitary climate and environmental conditions or in the environment where the law requires the use of corrosion-resistant materials
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

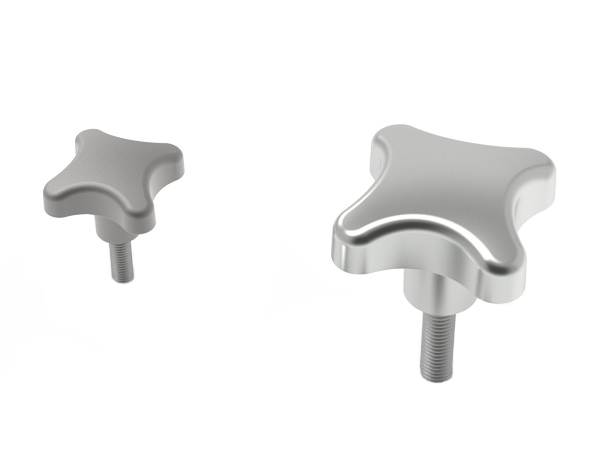

Four Star Bolt Knob
Four Star Bolt Knob
More information
If you have more technical advice，Please call0535-6217008-801
