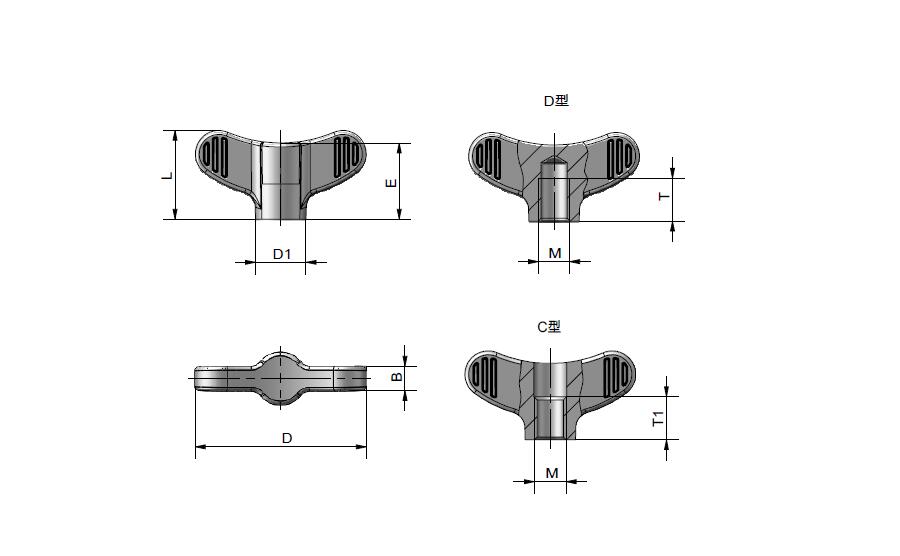

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T58-44-M5-D | SUS304 | 44 | 23 | 13 | M5 | 11 | / | / | / | / | 6 | 19 | Nut | / | / | / | / | / | / | / | |
| T58-44-M5-C | SUS304 | 44 | 23 | 13 | M5 | / | / | 11 | / | / | 6 | 19 | Nut | / | / | / | / | / | / | / | |
| T58-44-M6-D | SUS304 | 44 | 23 | 13 | M6 | 11 | / | / | / | / | 6 | 19 | Nut | / | 26.8 | / | / | / | / | / |
 |
| T58-44-M6-C | SUS304 | 44 | 23 | 13 | M6 | / | / | 11 | / | / | 6 | 19 | Nut | / | / | / | / | / | / | / |
|
| T58-44-M8-D | SUS304 | 44 | 23 | 13 | M8 | 11 | / | / | / | / | 6 | 19 | Nut | / | 26.8 | / | / | / | / | / | |
| T58-44-M8-C | SUS304 | 44 | 23 | 13 | M8 | / | / | 11 | / | / | 6 | 19 | Nut | / | / | / | / | / | / | / | |
| T58-60-M8-D | SUS304 | 60 | 31 | 17 | M8 | 11 | / | / | / | / | 8 | 27 | Nut | / | 65.3 | / | / | / | / | / |
|
| T58-60-M8-C | SUS304 | 60 | 31 | 17 | M8 | / | / | 11 | / | / | 8 | 27 | Nut | / | / | / | / | / | / | / |
|
| T58-60-M10-D | SUS304 | 60 | 31 | 17 | M10 | 11 | / | / | / | / | 8 | 27 | Nut | / | 65.3 | / | / | / | / | / | |
| T58-60-M10-C | SUS304 | 60 | 31 | 17 | M10 | / | / | 11 | / | / | 8 | 27 | Nut | / | / | / | / | / | / | / |
characteristic
Airfoil knobs can withstand extremely high fastening torque stainless steel with corrosion resistance, which can be used on all machinery and equipment under special circumstances or where required by law
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

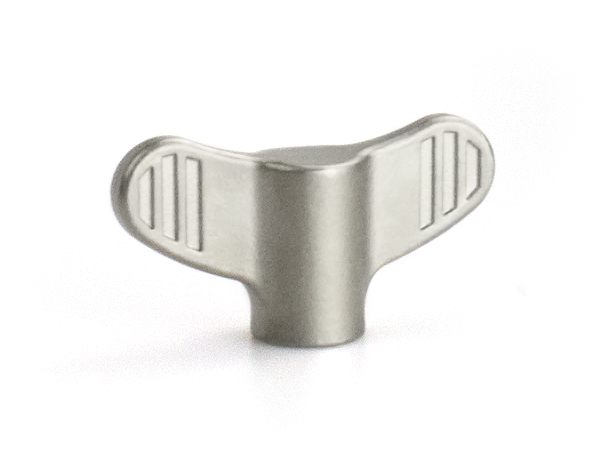

Nut-shaped Wing Knob
Nut-shaped Wing Knob
