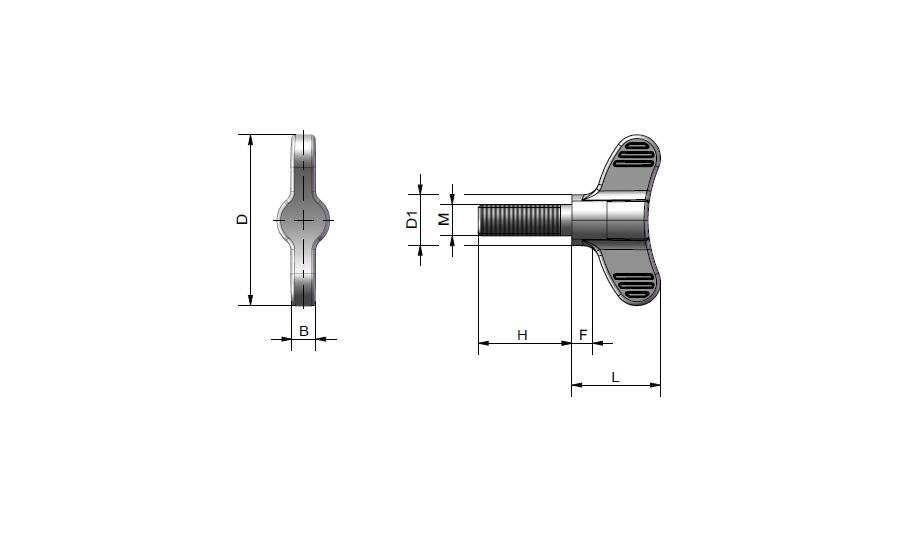

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T59-44-M5*20 | SUS304 | 44 | 23 | 13 | M5 | / | / | / | 5 | 20 | 6 | / | Screw | / | / | / | / | / | / | / | |
| T59-44-M6*20 | SUS304 | 44 | 23 | 13 | M6 | / | / | / | 5 | 20 | 6 | / | Screw | / | / | / | / | / | / | / |
 |
| T59-44-M6*30 | SUS304 | 44 | 23 | 13 | M6 | / | / | / | 5 | 30 | 6 | / | Screw | / | / | / | / | / | / | / | |
| T59-44-M8*20 | SUS304 | 44 | 23 | 13 | M8 | / | / | / | 5 | 20 | 6 | / | Screw | / | / | / | / | / | / | / | |
| T59-44-M8*30 | SUS304 | 44 | 23 | 13 | M8 | / | / | / | 5 | 30 | 6 | / | Screw | / | / | / | / | / | / | / | |
| T59-60-M8*30 | SUS304 | 60 | 31 | 17 | M8 | / | / | / | 7 | 30 | 8 | / | Screw | / | / | / | / | / | / | / | |
| T59-60-M8*40 | SUS304 | 60 | 31 | 17 | M8 | / | / | / | 7 | 40 | 8 | / | Screw | / | / | / | / | / | / | / | |
| T59-60-M10*30 | SUS304 | 60 | 31 | 17 | M10 | / | / | / | 7 | 30 | 8 | / | Screw | / | / | / | / | / | / | / | |
| T59-60-M10*40 | SUS304 | 60 | 31 | 17 | M10 | / | / | / | 7 | 40 | 8 | / | Screw | / | / | / | / | / | / | / |
characteristic
Screw-type wing knobs can withstand extremely high torque stainless steel has corrosion resistance, in special circumstances or the law requires the use of corrosion resistance departments, all machinery and equipment can be used
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

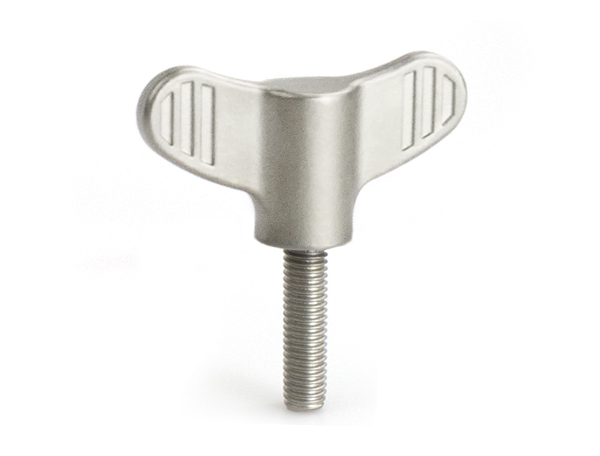

Screw Wing Knob
