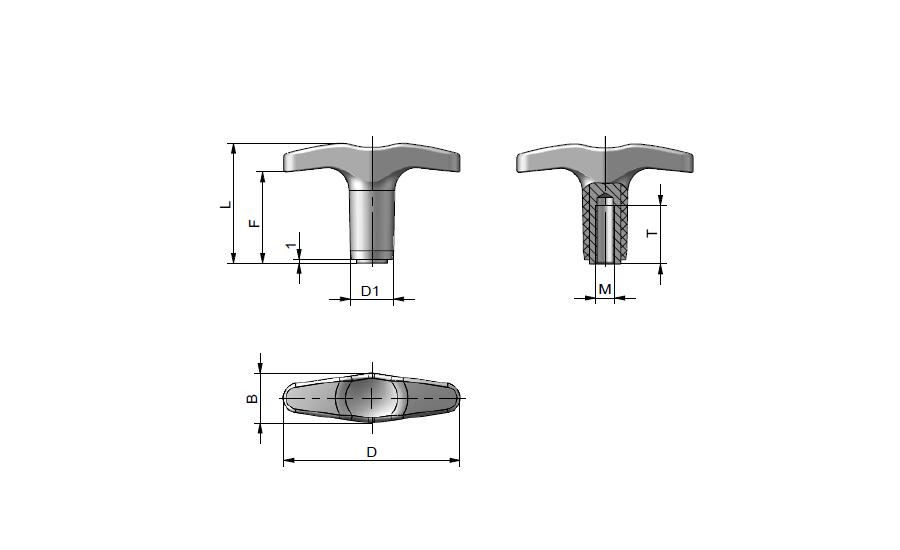

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T85-45-M5-W | Polyamide (PA) | 45 | 30 | 11 | M5 | 16 | / | / | 23 | / | 13 | / | Nut | / | / | / | / | / | / | / |
 |
| T85-45-M5-B | Polyamide (PA) | 45 | 30 | 11 | M5 | 16 | / | / | 23 | / | 13 | / | Nut | / | / | / | / | / | / | / |
|
| T85-45-M5-S | Polyamide (PA) | 45 | 30 | 11 | M5 | 16 | / | / | 23 | / | 13 | / | Nut | / | / | / | / | / | / | / |
|
| T85-65-M6-W | Polyamide (PA) | 65 | 44 | 16 | M6 | 20 | / | / | 34 | / | 18 | / | Nut | / | / | / | / | / | / | / | |
| T85-65-M6-B | Polyamide (PA) | 65 | 44 | 16 | M6 | 20 | / | / | 34 | / | 18 | / | Nut | / | / | / | / | / | / | / | |
| T85-65-M6-S | Polyamide (PA) | 65 | 44 | 16 | M6 | 20 | / | / | 34 | / | 18 | / | Nut | / | / | / | / | / | / | / | |
| T85-65-M8-W | Polyamide (PA) | 65 | 44 | 16 | M8 | 22 | / | / | 34 | / | 18 | / | Nut | / | / | / | / | / | / | / | |
| T85-65-M8-B | Polyamide (PA) | 65 | 44 | 16 | M8 | 22 | / | / | 34 | / | 18 | / | Nut | / | / | / | / | / | / | / | |
| T85-65-M8-S | Polyamide (PA) | 65 | 44 | 16 | M8 | 22 | / | / | 34 | / | 18 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M8-W | Polyamide (PA) | 80 | 54 | 20 | M8 | 26 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M8-B | Polyamide (PA) | 80 | 54 | 20 | M8 | 26 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M8-S | Polyamide (PA) | 80 | 54 | 20 | M8 | 26 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M10-W | Polyamide (PA) | 80 | 54 | 20 | M10 | 26 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M10-B | Polyamide (PA) | 80 | 54 | 20 | M10 | 26 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M10-S | Polyamide (PA) | 80 | 54 | 20 | M10 | 26 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M12-W | Polyamide (PA) | 80 | 54 | 20 | M12 | 20 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M12-B | Polyamide (PA) | 80 | 54 | 20 | M12 | 20 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / | |
| T85-80-M12-S | Polyamide (PA) | 80 | 54 | 20 | M12 | 20 | / | / | 42 | / | 23 | / | Nut | / | / | / | / | / | / | / |
characteristic

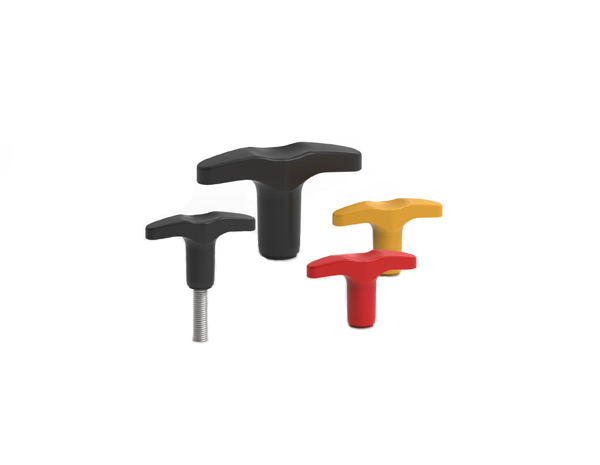

W black; B yellow; S red, matte finish, copper hub with plain or threaded blind hole
High strength, suitable for drawing occasion
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
T-nut Knob
T-nut Knob
More information
If you have more technical advice，Please call0535-6217008-801
