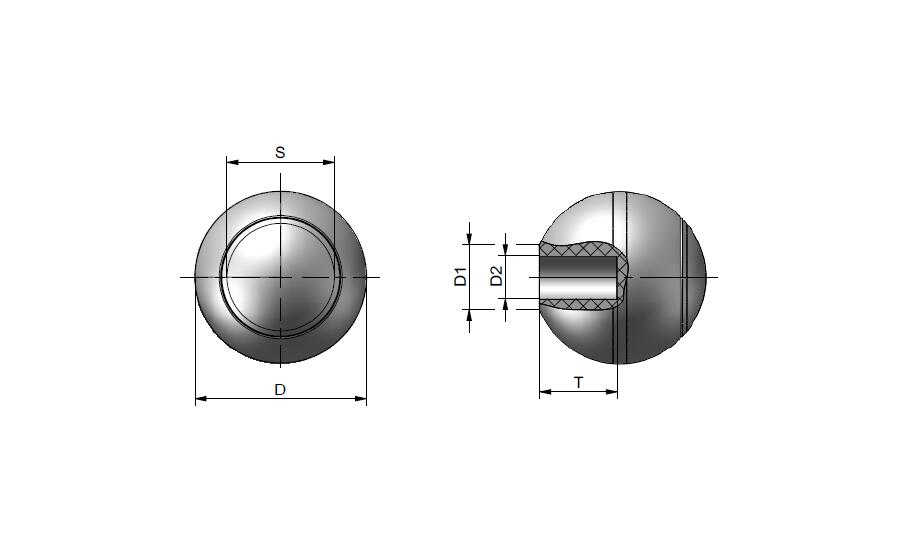

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T87-35-8 | Polyamide(PA) | 35 | / | 13 | / | 14 | 8 | / | / | / | / | / | / | / | / | / | / | 24 | / | / | |
| T87-35-10 | Polyamide(PA) | 35 | / | 13 | / | 18 | 10 | / | / | / | / | / | / | / | / | / | / | 24 | / | / | |
| T87-45-12 | Polyamide(PA) | 45 | / | 17 | / | 21 | 12 | / | / | / | / | / | / | / | / | / | / | 31 | / | / | |
| T87-45-14 | Polyamide(PA) | 45 | / | 17 | / | 24 | 14 | / | / | / | / | / | / | / | / | / | / | 31 | / | / |
characteristic

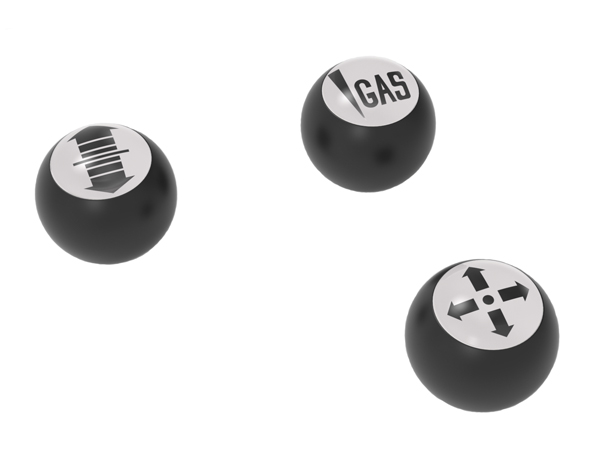

Black, bright finish with equal slot
A transparent polyamide-based (PA) technopolymer that has a magnification effect and is pushed into the mounting cap. Resistant to solvents, oils, greases and other chemical solvents. Avoid contact with alcohol.
Available services
Services available :1.Non-standardLength customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
