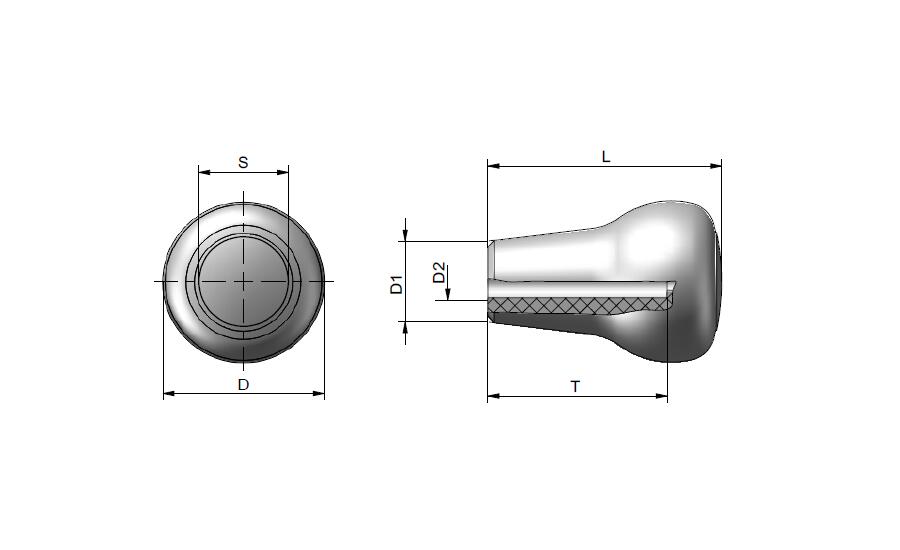

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T88-45-10 | Polyamide(PA) | 45 | 65 | 23 | / | 50 | 10 | / | / | / | / | / | / | / | / | / | / | 25 | / | / | |
| T88-45-12 | Polyamide(PA) | 45 | 65 | 23 | / | 50 | 10 | / | / | / | / | / | / | / | / | / | / | 25 | / | / |

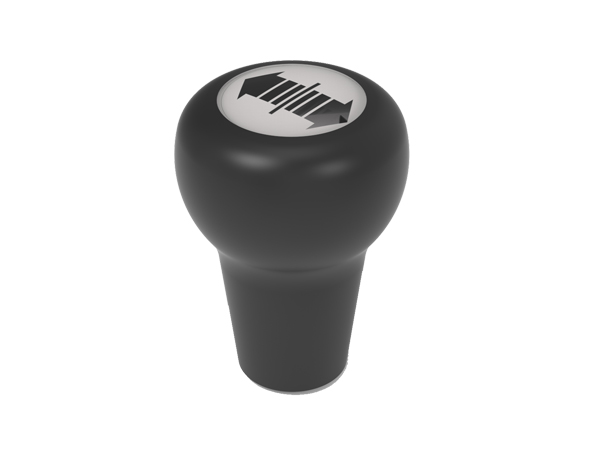

characteristic
Black, matte finish
Transparent polyamide based (PA-T) technopolymer with amplifying effect. Resistant to solvents, oils, grease, gasoline and other chemical solvents (avoid contact with alcohol). Press-fit assembly. Can provide the visibility of the label
Available services
Services available :1.Non-standardLength customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
