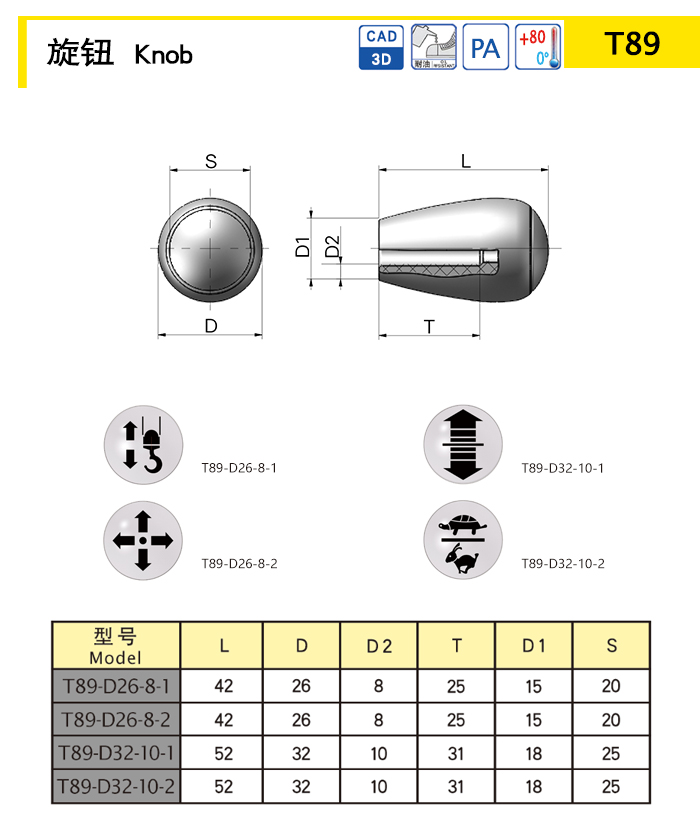

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T89-D26-8-1 | Polyamide(PA) | 26 | 42 | 15 | / | 25 | 8 | / | / | / | / | / | / | / | / | / | / | 20 | / | / |
 |
| T89-D26-8-2 | Polyamide(PA) | 26 | 42 | 15 | / | 25 | 8 | / | / | / | / | / | / | / | / | / | / | 20 | / | / | |
| T89-D32-10-1 | Polyamide(PA) | 32 | 52 | 18 | / | 31 | 10 | / | / | / | / | / | / | / | / | / | / | 25 | / | / |
|
| T89-D32-10-2 | Polyamide(PA) | 32 | 52 | 18 | / | 31 | 10 | / | / | / | / | / | / | / | / | / | / | 25 | / | / |
characteristic
Black,Matte,finish
Transparent polyamide based (PA-T) technopolymer with amplifying effect. Resistant to solvents, oils, grease, gasoline and other chemical solvents (avoid contact with alcohol). Press-fit assembly. Can improve the visibility of the label
Available services
1.Non-standardLength customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
