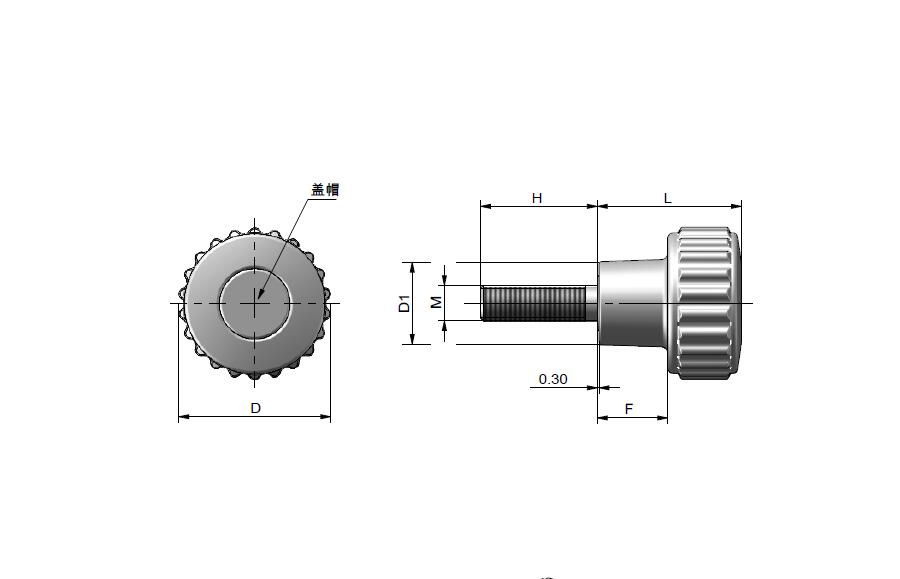

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T81-18-M4*10 | Polyamide (PA) | 18 | 17 | 10 | M4 | / | / | / | 8 | 10 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-18-M4*20 | Polyamide (PA) | 18 | 17 | 10 | M4 | / | / | / | 8 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-26-M5*20 | Polyamide (PA) | 26 | 24.5 | 14 | M5 | / | / | / | 12 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-26-M5*30 | Polyamide (PA) | 26 | 24.5 | 14 | M5 | / | / | / | 12 | 30 | / | / | Screw | / | / | / | / | / | / | / |
 |
| T81-26-M5*40 | Polyamide (PA) | 26 | 24.5 | 14 | M5 | / | / | / | 12 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-26-M6*20 | Polyamide (PA) | 26 | 24.5 | 14 | M6 | / | / | / | 12 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-26-M6*30 | Polyamide (PA) | 26 | 24.5 | 14 | M6 | / | / | / | 12 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-26-M6*40 | Polyamide (PA) | 26 | 24.5 | 14 | M6 | / | / | / | 12 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-31-M8*20 | Polyamide (PA) | 31 | 29 | 17 | M8 | / | / | / | 17 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-31-M8*30 | Polyamide (PA) | 31 | 29 | 17 | M8 | / | / | / | 17 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-31-M8*40 | Polyamide (PA) | 31 | 29 | 17 | M8 | / | / | / | 17 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-31-M6*20 | Polyamide (PA) | 31 | 29 | 17 | M6 | / | / | / | 17 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-31-M6*30 | Polyamide (PA) | 31 | 29 | 17 | M6 | / | / | / | 17 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-31-M6*40 | Polyamide (PA) | 31 | 29 | 17 | M6 | / | / | / | 17 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-40-M8*20 | Polyamide (PA) | 40 | 38 | 22 | M8 | / | / | / | 18 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-40-M8*30 | Polyamide (PA) | 40 | 38 | 22 | M8 | / | / | / | 18 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-40-M8*40 | Polyamide (PA) | 40 | 38 | 22 | M8 | / | / | / | 18 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-40-M10*20 | Polyamide (PA) | 40 | 38 | 22 | M10 | / | / | / | 18 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T81-40-M10*30 | Polyamide (PA) | 40 | 38 | 22 | M10 | / | / | / | 18 | 30 | / | / | Screw | / | / | / | / | / | / | / |
characteristic
Black, matte finish; Galvanized steel screw
Comfortable grip with high friction, use for fastening
Can be used for various machinery, equipment, etc
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

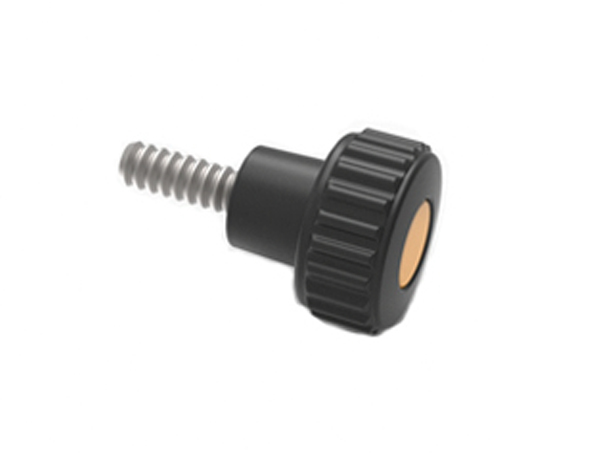

Knurled Grip Knob
Knurled Grip Knob
More information
If you have more technical advice，Please call0535-6217008-801
