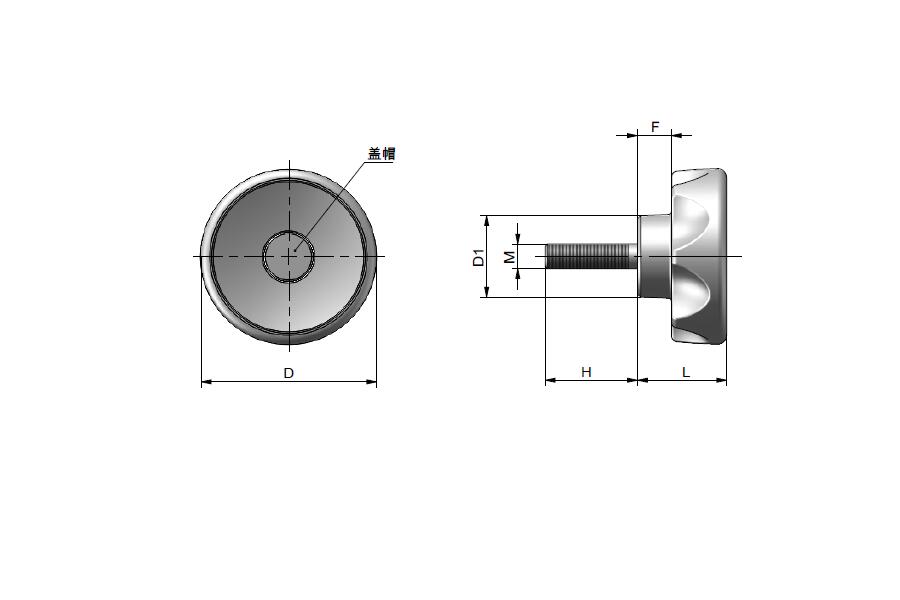

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T79-57-M8*20 | Polyamide (PA) | 57 | 29 | 26 | M8 | / | / | / | 11 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-57-M8*30 | Polyamide (PA) | 57 | 29 | 26 | M8 | / | / | / | 11 | 30 | / | / | Screw | / | / | / | / | / | / | / |
 |
| T79-57-M8*40 | Polyamide (PA) | 57 | 29 | 26 | M8 | / | / | / | 11 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-45-M8*20 | Polyamide (PA) | 45 | 23 | 21 | M8 | / | / | / | 8.5 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-45-M8*30 | Polyamide (PA) | 45 | 23 | 21 | M8 | / | / | / | 8.5 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-70-M10*30 | Polyamide (PA) | 70 | 35.5 | 32.5 | M10 | / | / | / | 13.5 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-70-M10*40 | Polyamide (PA) | 70 | 35.5 | 32.5 | M10 | / | / | / | 13.5 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-70-M12*40 | Polyamide (PA) | 70 | 35.5 | 32.5 | M12 | / | / | / | 13.5 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T79-70-M12*50 | Polyamide (PA) | 70 | 35.5 | 32.5 | M12 | / | / | / | 13.5 | 50 | / | / | Screw | / | / | / | / | / | / | / |

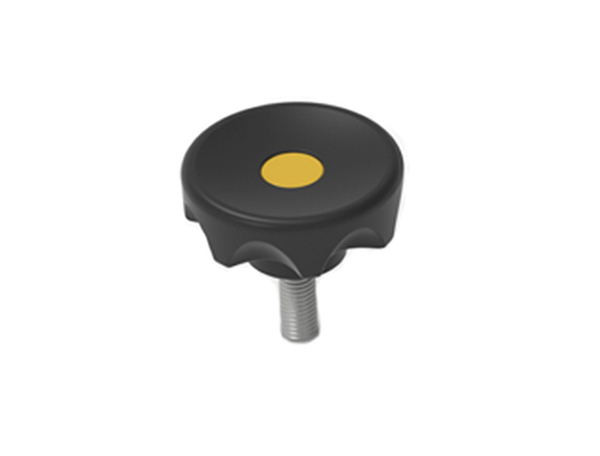

characteristic
Black, matte finish
The knob is slightly concave on the front and is equipped with a finger grip area below, which can obtain the maximum torque with the minimum force
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Ripple Bolt Knob
Ripple Bolt Knob
