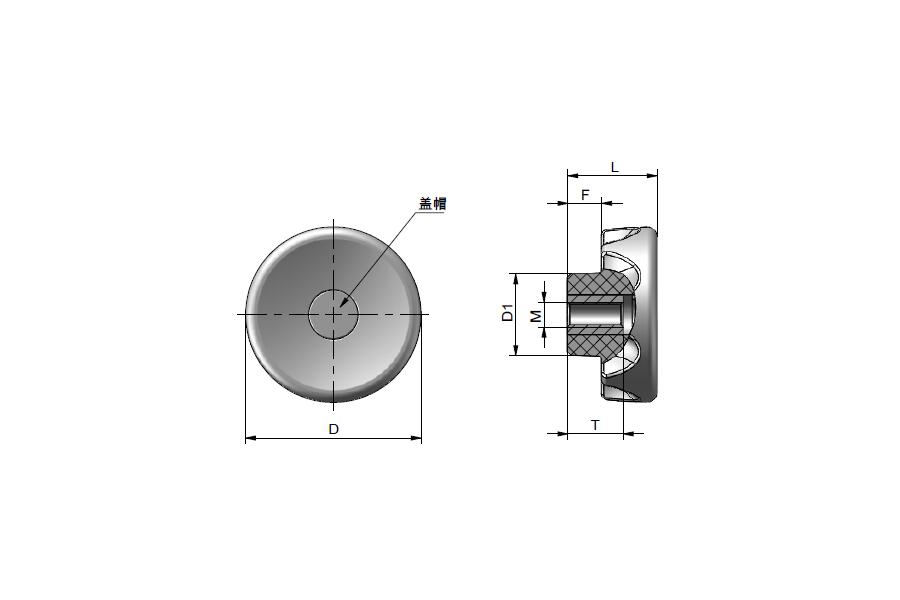

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T78-45-M6 | Polyamide (PA) | 45 | 23 | 21 | M6 | 10 | / | / | 8.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T78-45-M8 | Polyamide (PA) | 45 | 23 | 21 | M8 | 12 | / | / | 8.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T78-57-M8 | Polyamide (PA) | 57 | 29 | 26 | M8 | 16 | / | / | 11 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T78-57-M10 | Polyamide (PA) | 57 | 29 | 26 | M10 | 16 | / | / | 11 | / | / | / | Nut | / | / | / | / | / | / | / |
 |
| T78-70-M10 | Polyamide (PA) | 70 | 35.5 | 32.5 | M10 | 20 | / | / | 13.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T78-70-M12 | Polyamide (PA) | 70 | 35.5 | 32.5 | M12 | 20 | / | / | 13.5 | / | / | / | Nut | / | / | / | / | / | / | / |
characteristic

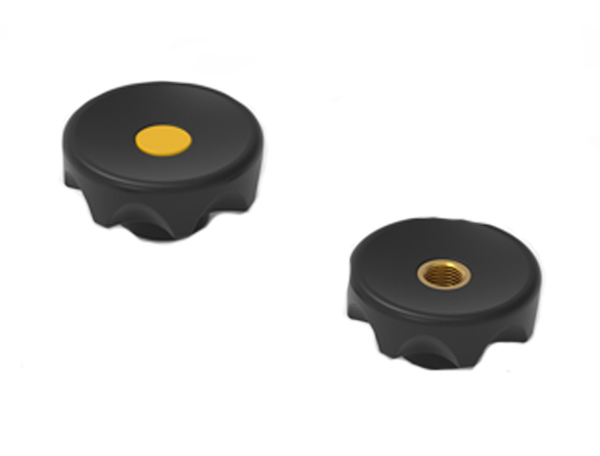

Black, matte finish; Copper hub
The knob with cap can be removed for use. The knob is slightly concave on the front and is equipped with a finger grip area below, which can move the maximum torque with the minimum force
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Ripple Nut Knob
Ripple Nut Knob
More information
If you have more technical advice，Please call0535-6217008-801
