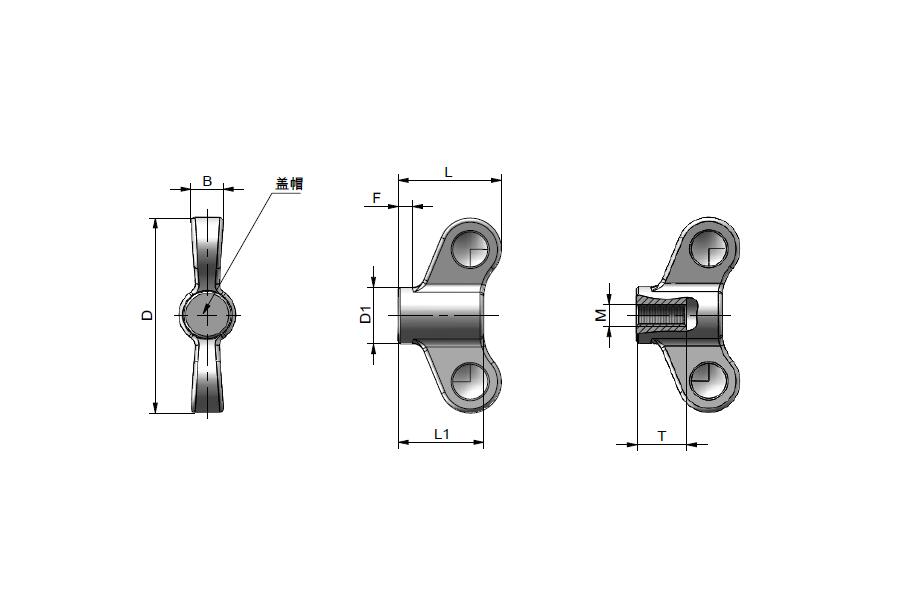

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T72-50-M5 | Polyamide (PA) | / | 26.5 | 14.5 | M5 | 13 | / | / | 6 | / | 8 | / | Nut | 22 | / | / | / | / | / | / | |
| T72-50-M6 | Polyamide (PA) | / | 26.5 | 14.5 | M6 | 13 | / | / | 6 | / | 8 | / | Nut | 22 | / | / | / | / | / | / |
 |
| T72-50-M8 | Polyamide (PA) | / | 26.5 | 14.5 | M8 | 13 | / | / | 6 | / | 8 | / | Nut | 22 | / | / | / | / | / | / | |
| T72-66-M8 | Polyamide (PA) | / | 35 | 19 | M8 | 18 | / | / | 8 | / | 11 | / | Nut | 29 | / | / | / | / | / | / | |
| T72-66-M10 | Polyamide (PA) | / | 35 | 19 | M10 | 18 | / | / | 8 | / | 11 | / | Nut | 29 | / | / | / | / | / | / |
characteristic

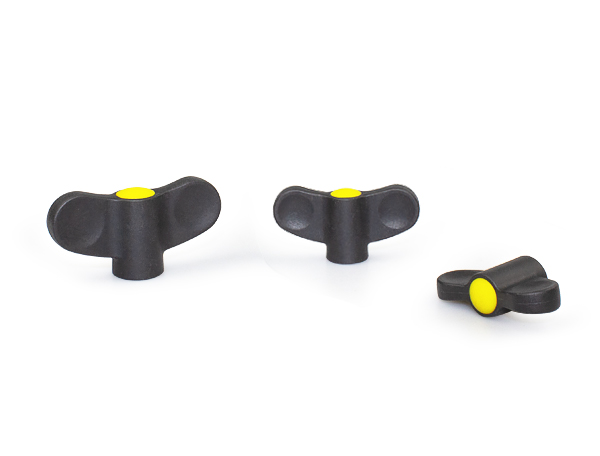

Black, matte finish; Copper hub with threaded through hole
Knob butterfly position slightly concave, to help finger grip positioning, to help fastening, cap can be taken off the use
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Double Wing Nut Knob
Double Wing Nut Knob
