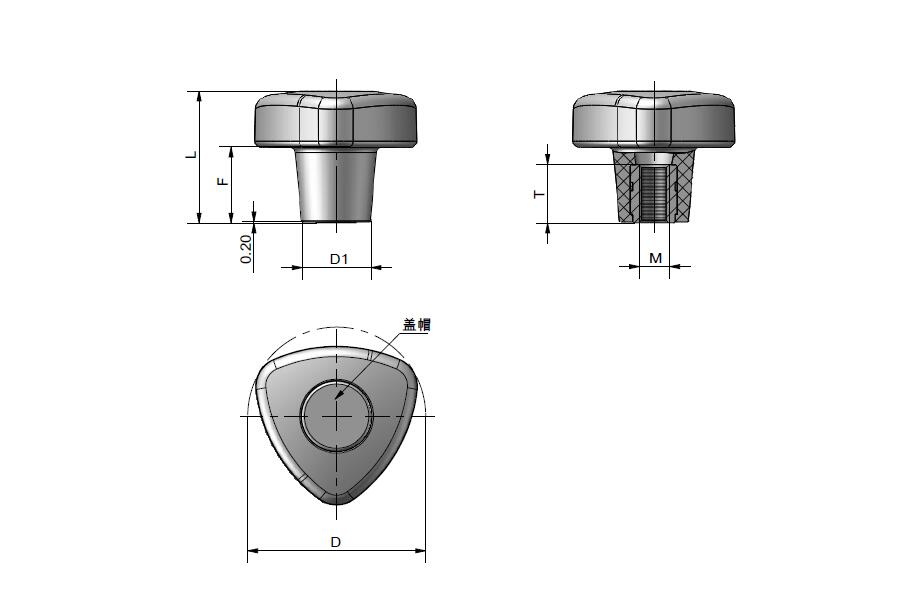

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T68-30-M5 | Polyamide (PA) | 30 | 22.5 | / | M5 | 10 | / | / | 13 | / | / | / | Nut | / | / | / | / | / | / | / |
 |
| T68-40-M6 | Polyamide (PA) | 40.5 | 30 | / | M6 | 13 | / | / | 17 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T68-40-M8 | Polyamide (PA) | 40.5 | 30 | / | M8 | 13 | / | / | 17 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T68-50-M8 | Polyamide (PA) | 51 | 37.5 | / | M8 | 20 | / | / | 21.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T68-50-M10 | Polyamide (PA) | 51 | 37.5 | / | M10 | 20 | / | / | 21.5 | / | / | / | Nut | / | / | / | / | / | / | / |
characteristic
Color: R: orange; B: black gloss finish
Copper hub: threaded through hole
The cap can be removed to use, with arc three areas of the knob, beautiful appearance, easy to tighten
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo

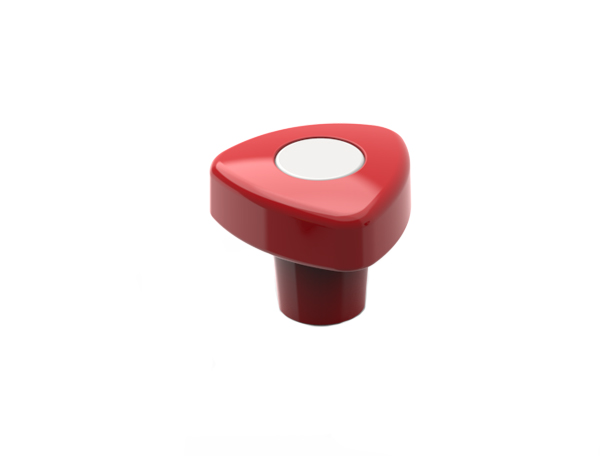

Product Name
Triangle Nut Knob
Triangle Nut Knob
