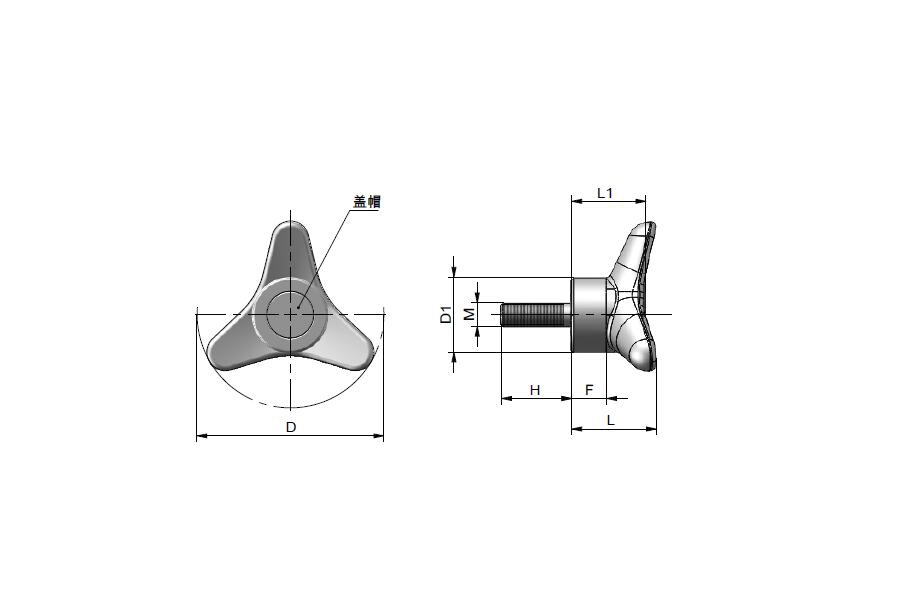

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T66-64-M10 | Polyamide (PA) | 64 | 29 | 25 | M10 | 18 | / | / | 12 | / | / | / | Nut | 25 | / | / | / | / | / | / | |
| T66-80-M10 | Polyamide (PA) | 80 | 36 | 32 | M10 | 22 | / | / | 15 | / | / | / | Nut | 32 | / | / | / | / | / | / | |
| T66-80-M12 | Polyamide (PA) | 80 | 36 | 32 | M12 | 22 | / | / | 15 | / | / | / | Nut | 32 | / | / | / | / | / | / | |
| T66-96-M16 | Polyamide (PA) | 96 | 43 | 38 | M16 | 28 | / | / | 18 | / | / | / | Nut | 28 | / | / | / | / | / | / |
characteristic
Black, matte finish
Copper hub: threaded through hole
Cap: removable
It is used for the occasions with high working intensity
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name

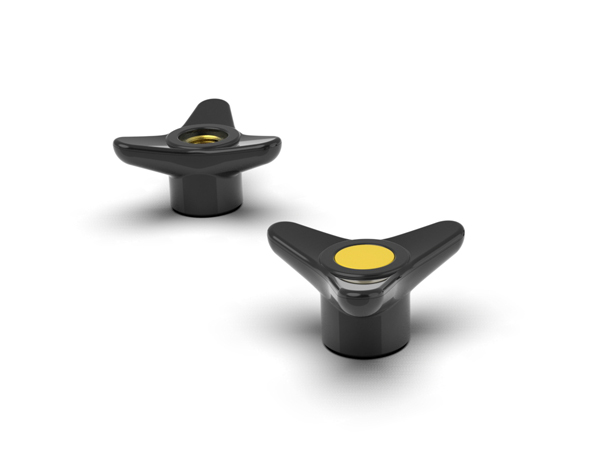

Three-arm Nut Knob
Three-arm Nut Knob
More information
If you have more technical advice，Please call0535-6217008-801
