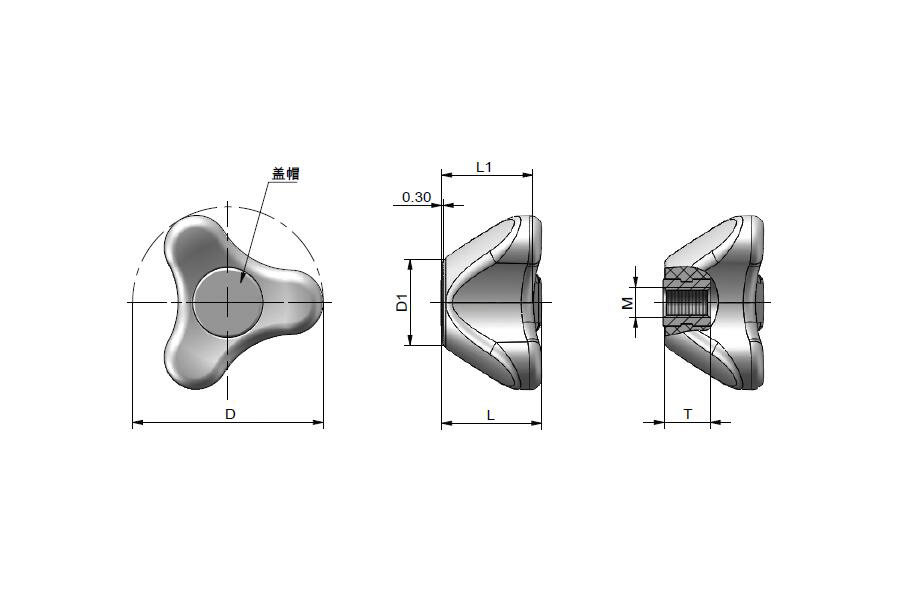

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T70-33-M5 | Polyamide (PA) | 32.5 | 17 | 15 | M5 | 8 | / | / | / | / | / | / | Nut | 15 | / | / | / | / | / | / |
 |
| T70-33-M6 | Polyamide (PA) | 32.5 | 17 | 15 | M6 | 8 | / | / | / | / | / | / | Nut | 15 | / | / | / | / | / | / | |
| T70-33-M8 | Polyamide (PA) | 32.5 | 17 | 15 | M8 | 8 | / | / | / | / | / | / | Nut | 15 | / | / | / | / | / | / | |
| T70-43-M8 | Polyamide (PA) | 32.5 | 22 | 19.5 | M8 | 12 | / | / | / | / | / | / | Nut | 20 | / | / | / | / | / | / | |
| T70-43-M10 | Polyamide (PA) | 43.5 | 22 | 19.5 | M10 | 12 | / | / | / | / | / | / | Nut | 20 | / | / | / | / | / | / | |
| T70-43-M12 | Polyamide (PA) | 43.5 | 22 | 19.5 | M12 | 12 | / | / | / | / | / | / | Nut | 20 | / | / | / | / | / | / |
characteristic
Black, matte finish
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

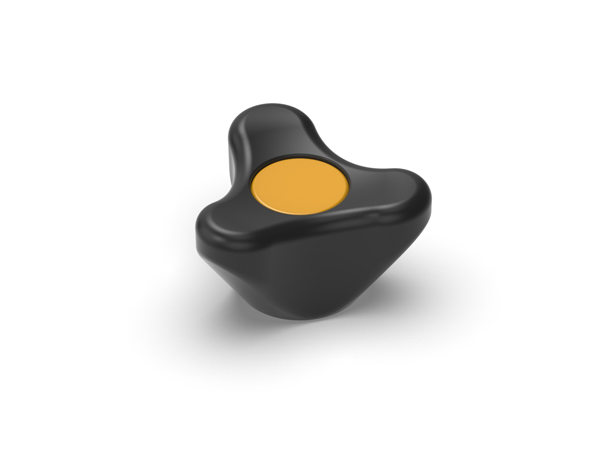

Three Star Nut Knob
Three Star Nut Knob
More information
If you have more technical advice，Please call0535-6217008-801
