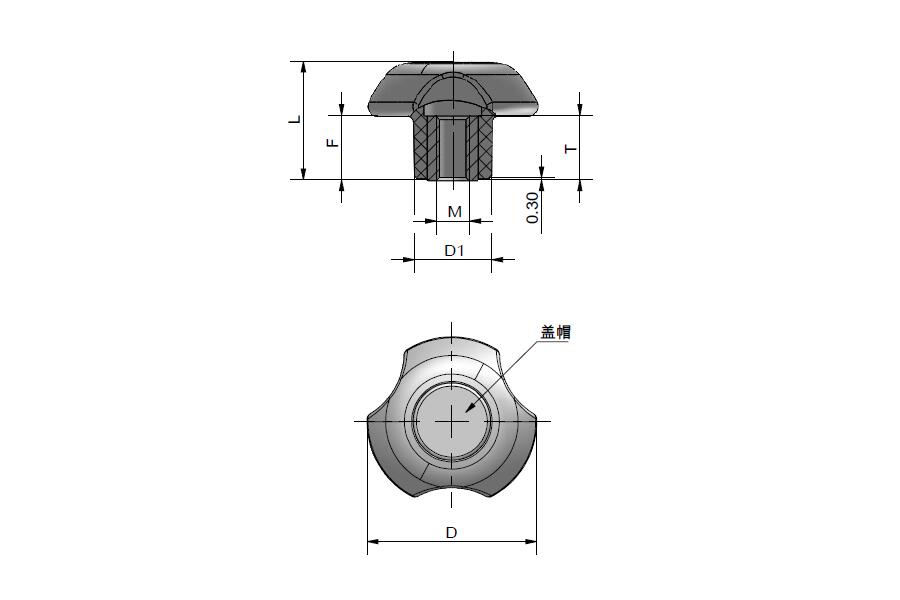

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T62-26-M5 | Polyamide (PA) | 26 | 18 | 12 | M5 | 10 | / | / | 10 | / | / | / | Nut | / | / | / | / | / | / | / |
 |
| T62-35-M6 | Polyamide (PA) | 35 | 24.5 | 16 | M6 | 13 | / | / | 13 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T62-35-M8 | Polyamide (PA) | 35 | 24.5 | 16 | M8 | 13 | / | / | 13 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T62-44-M8 | Polyamide (PA) | 44 | 30.5 | 20 | M8 | 16 | / | / | 16.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T62-44-M10 | Polyamide (PA) | 44 | 30.5 | 20 | M10 | 16 | / | / | 16.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T62-53-M10 | Polyamide (PA) | 53 | 37 | 24 | M10 | 20 | / | / | 20 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T62-53-M12 | Polyamide (PA) | 53 | 37 | 24 | M12 | 20 | / | / | 20 | / | / | / | Nut | / | / | / | / | / | / | / |

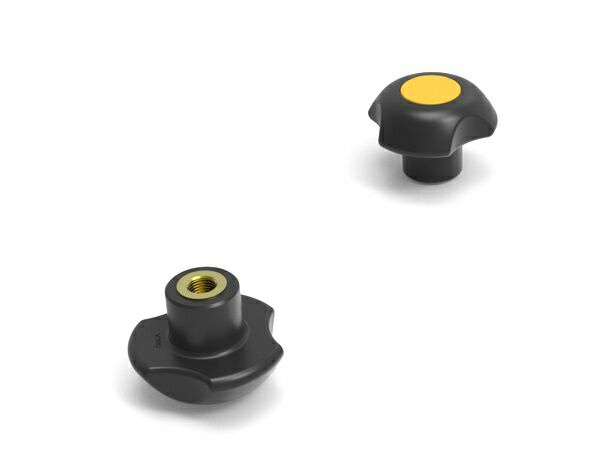

characteristic
Black Matte finish
Copper hub: threaded through hole
Cap: removable
The cap can be taken off and used. Beautiful shape, both beautiful and practical
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Three Star Nut Knob
Three Star Nut Knob
