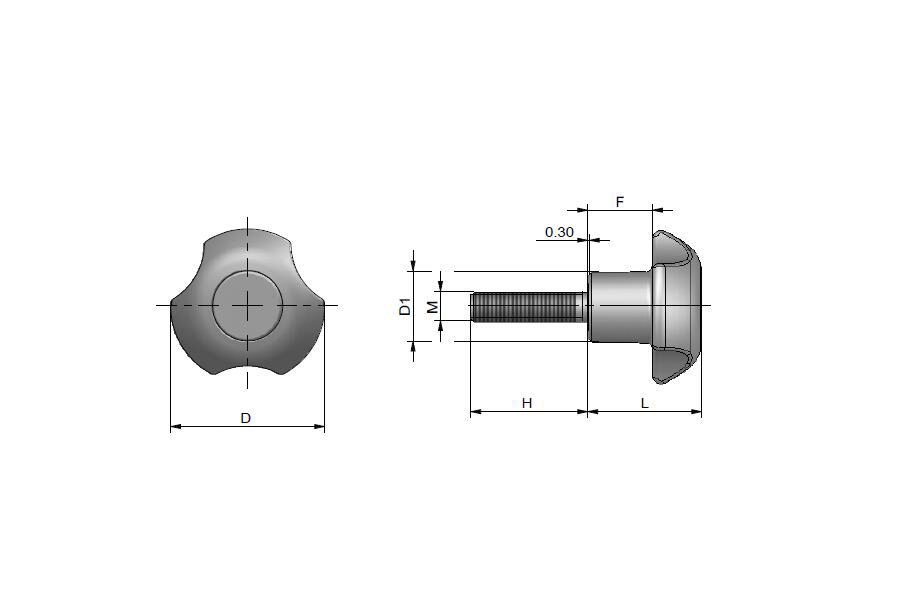

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T63-26-M5*10 | Polyamide (PA) | 26 | 18 | 12 | M5 | / | / | / | 10 | 10 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-26-M5*20 | Polyamide (PA) | 26 | 18 | 12 | M5 | / | / | / | 10 | 20 | / | / | Screw | / | / | / | / | / | / | / |
 |
| T63-26-M5*30 | Polyamide (PA) | 26 | 18 | 12 | M5 | / | / | / | 10 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-35-M6*10 | Polyamide (PA) | 35 | 24.5 | 16 | M6 | / | / | / | 13 | 10 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-35-M6*20 | Polyamide (PA) | 35 | 24.5 | 16 | M6 | / | / | / | 13 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-35-M6*40 | Polyamide (PA) | 35 | 24.5 | 16 | M6 | / | / | / | 13 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-35-M8*20 | Polyamide (PA) | 35 | 24.5 | 16 | M8 | / | / | / | 13 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-35-M8*30 | Polyamide (PA) | 35 | 24.5 | 16 | M8 | / | / | / | 13 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-35-M8*40 | Polyamide (PA) | 35 | 24.5 | 16 | M8 | / | / | / | 13 | 40 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-44-M8*20 | Polyamide (PA) | 44 | 30.5 | 20 | M8 | / | / | / | 20 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-44-M8*30 | Polyamide (PA) | 44 | 30.5 | 20 | M8 | / | / | / | 20 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-44-M8*50 | Polyamide (PA) | 44 | 30.5 | 20 | M8 | / | / | / | 20 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-44-M10*20 | Polyamide (PA) | 44 | 30.5 | 20 | M10 | / | / | / | 20 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-44-M10*30 | Polyamide (PA) | 44 | 30.5 | 20 | M10 | / | / | / | 20 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-44-M10*50 | Polyamide (PA) | 44 | 30.5 | 20 | M10 | / | / | / | 20 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-53-M10*20 | Polyamide (PA) | 53 | 37 | 24 | M10 | / | / | / | 24 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-53-M10*30 | Polyamide (PA) | 53 | 37 | 24 | M10 | / | / | / | 24 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-53-M10*50 | Polyamide (PA) | 53 | 37 | 24 | M10 | / | / | / | 24 | 50 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-53-M12*20 | Polyamide (PA) | 53 | 37 | 24 | M12 | / | / | / | 24 | 20 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-53-M12*30 | Polyamide (PA) | 53 | 37 | 24 | M12 | / | / | / | 24 | 30 | / | / | Screw | / | / | / | / | / | / | / | |
| T63-53-M12*50 | Polyamide (PA) | 53 | 37 | 24 | M12 | / | / | / | 24 | 50 | / | / | Screw | / | / | / | / | / | / | / |
characteristic
Black， Matte finish
Galvanized steel screw rod
Beautiful shape, both beautiful and practical
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name

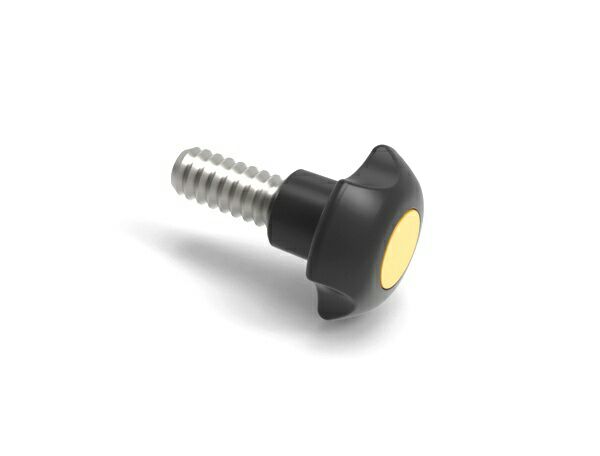

Three Star Bolt Knob
Three Star Bolt Knob
More information
If you have more technical advice，Please call0535-6217008-801
