| Model Number | Material  | Diameter | Length L | D1 | M | T | D2 | T1 | F | Height | B | E | Feature | L1 | Weight (g) | h | d | S | L2 | D3 | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T50-32-M6-D | Aluminum Alloy | 32 | 24.4 | 14.4 | M6 | 15 | / | / | 12.5 | / | / | / | Nut | / | 23.2 | / | / | / | / | / |
 |
| T50-40-M8-D | Aluminum Alloy | 40 | 30.5 | 18 | M8 | 15 | / | / | 16 | / | / | / | Nut | / | 45 | / | / | / | / | / |
|
| T50-50-M10-D | Aluminum Alloy | 50 | 38 | 22.5 | M10 | 20 | / | / | 20 | / | / | / | Nut | / | / | / | / | / | / | / |
|
| T50-60-M12-D | Aluminum Alloy | 60 | 45.5 | 27 | M12 | 24 | / | / | 24 | / | / | / | Nut | / | / | / | / | / | / | / |
|
| T50B-32-M6-D | SUS304 | 32 | 24.4 | 14.4 | M6 | 15 | / | / | 12.5 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T50B-40-M8-D | SUS304 | 40 | 30.5 | 18 | M8 | 15 | / | / | 16 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T50B-50-M10-D | SUS304 | 50 | 38 | 22.5 | M10 | 20 | / | / | 20 | / | / | / | Nut | / | / | / | / | / | / | / | |
| T50B-60-M12-D | SUS304 | 60 | 45.5 | 27 | M12 | 24 | / | / | 24 | / | / | / | Nut | / | / | / | / | / | / | / |
T50: aluminum alloy, matte finish
T50B: stainless steel, matte finish

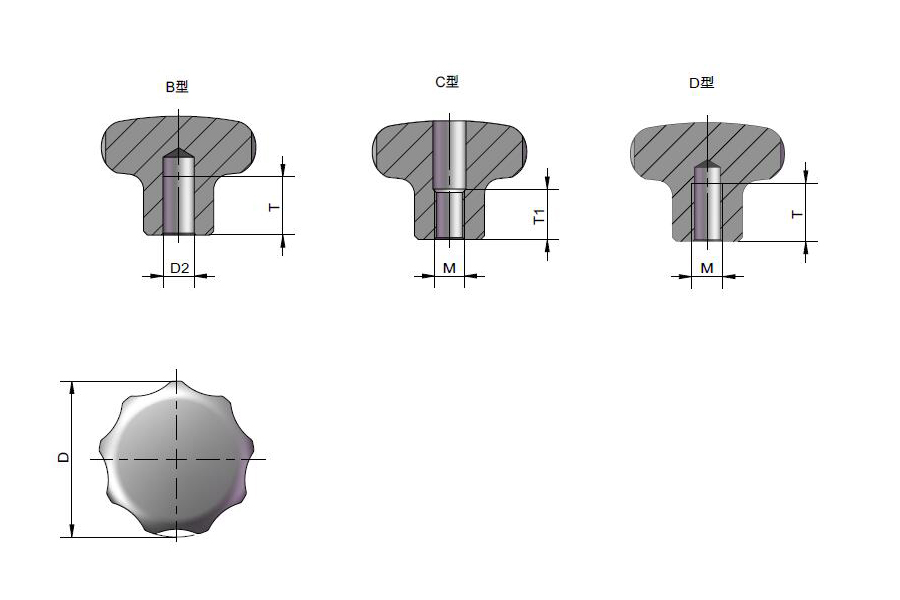

Installation:
B type:With standard H7 hinge blind hole
C type : threaded through hole
D type : threaded blind hole
Stainless steel has good corrosion resistance，under special sanitary climate and environmental conditions or in the environment where the law requires the use of corrosion-resistant materials.
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo

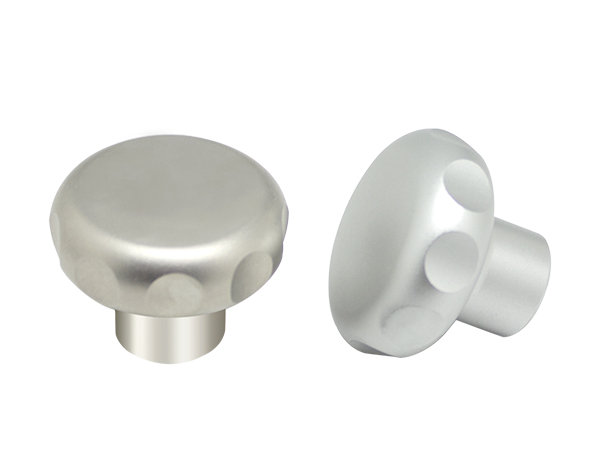

Plum Nut Knob
