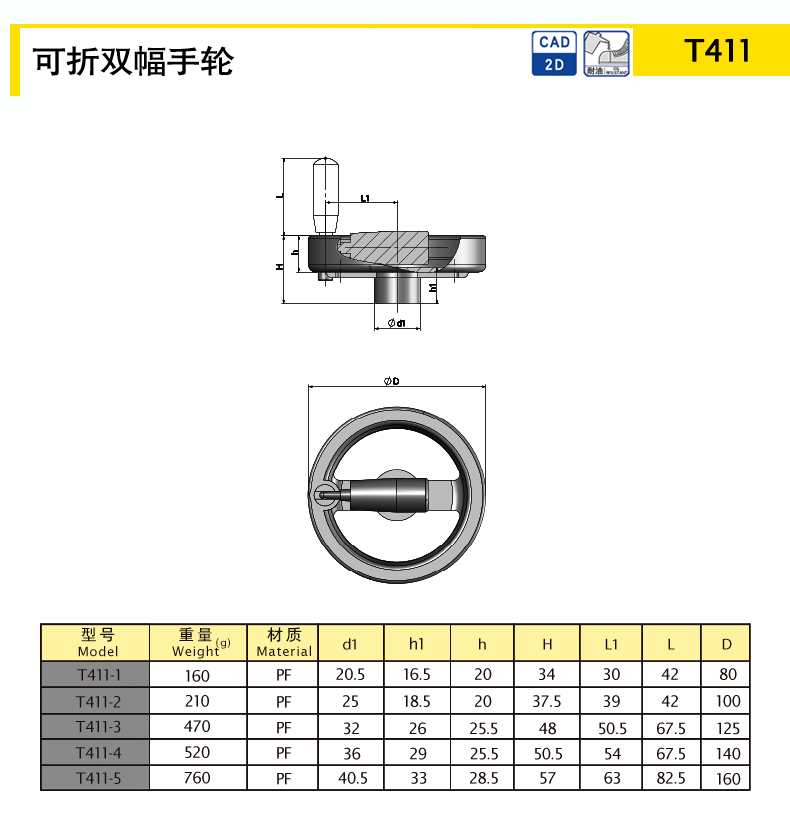

Product size diagram
Product size and properties
| Model Number | H  | L1 | Material | B | D1 | M | R | H2 | d1 | d2 | h | d | D | L | h1 | r | s | a | b | I | d4 | f |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T411-1 | 34 | 30 | PF | / | / | / | / | / | 20.5 | / | 20 | / | 80 | 42 | 16.5 | / | / | / | / | / | / | / |
 |
| T411-2 | 37.5 | 39 | PF | / | / | / | / | / | 25 | / | 20 | / | 100 | 42 | 18.5 | / | / | / | / | / | / | / |
|
| T411-3 | 48 | 50.5 | PF | / | / | / | / | / | 32 | / | 25.5 | / | 125 | 67.5 | 26 | / | / | / | / | / | / | / |
|
| T411-4 | 50.5 | 54 | PF | / | / | / | / | / | 36 | / | 25.5 | / | 140 | 67.5 | 29 | / | / | / | / | / | / | / |
|
| T411-5 | 57 | 63 | PF | / | / | / | / | / | 40.5 | / | 28.5 | / | 160 | 82.5 | 33 | / | / | / | / | / | / | / |
|
characteristic
Resistant to chemical corrosion and high temperature
Foldable handle, convenient operation, not taking up space
Foldable handle, convenient operation, not taking up space
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

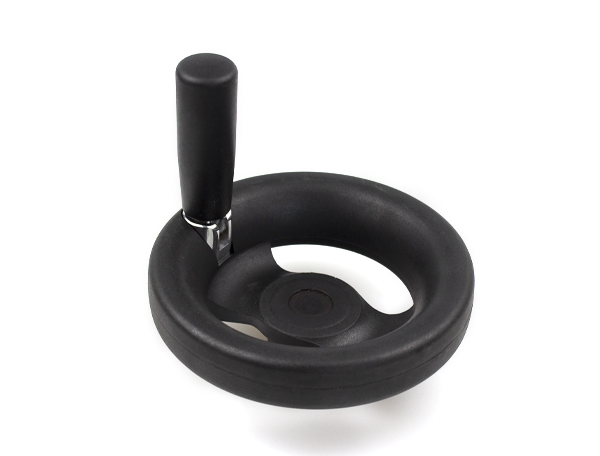

Folding Double-width Handwheel
Folding Double-width Handwheel
More information
If you have more technical advice，Please call0535-6217008-801
