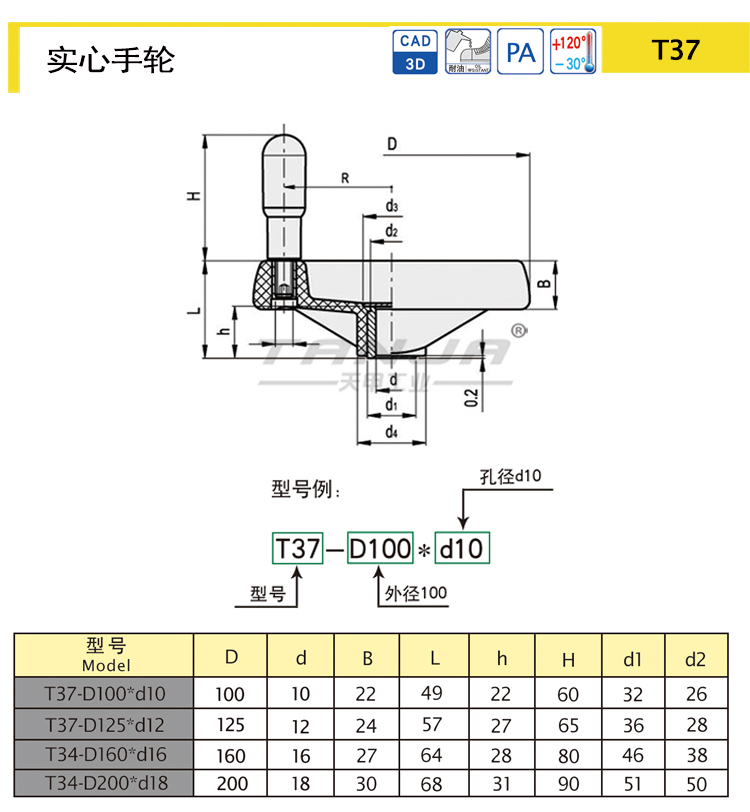

Product size diagram
Product size and properties
| Model Number | H  | L1 | Material | B | D1 | M | R | H2 | d1 | d2 | h | d | D | L | h1 | r | s | a | b | I | d4 | f |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T37-D100*d10 | 60 | / | Phenolic based(PF) thermosetting plastics | 22 | / | / | / | / | 32 | 26 | 22 | 10 | 100 | 49 | / | / | / | / | / | / | / | / | |
| T37-D125*d12 | 65 | / | Phenolic based(PF) thermosetting plastics | 24 | / | / | / | / | 36 | 28 | 27 | 12 | 125 | 57 | / | / | / | / | / | / | / | / | |
| T37-D160*d16 | 80 | / | Phenolic based(PF) thermosetting plastics | 27 | / | / | / | / | 46 | 38 | 28 | 16 | 160 | 64 | / | / | / | / | / | / | / | / | |
| T37-D200*d18 | 90 | / | Phenolic based(PF) thermosetting plastics | 30 | / | / | / | / | 51 | 50 | 31 | 18 | 200 | 68 | / | / | / | / | / | / | / | / |
characteristic
Resistant to chemical solvent,greasy dirt,high temperature resistance.
Adjustment of various mechanical equipment and precision instruments
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

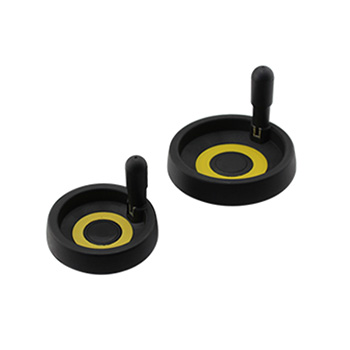

Solid Handwheels With Fold-Away Handle
Solid Handwheels With Fold-Away Handle
