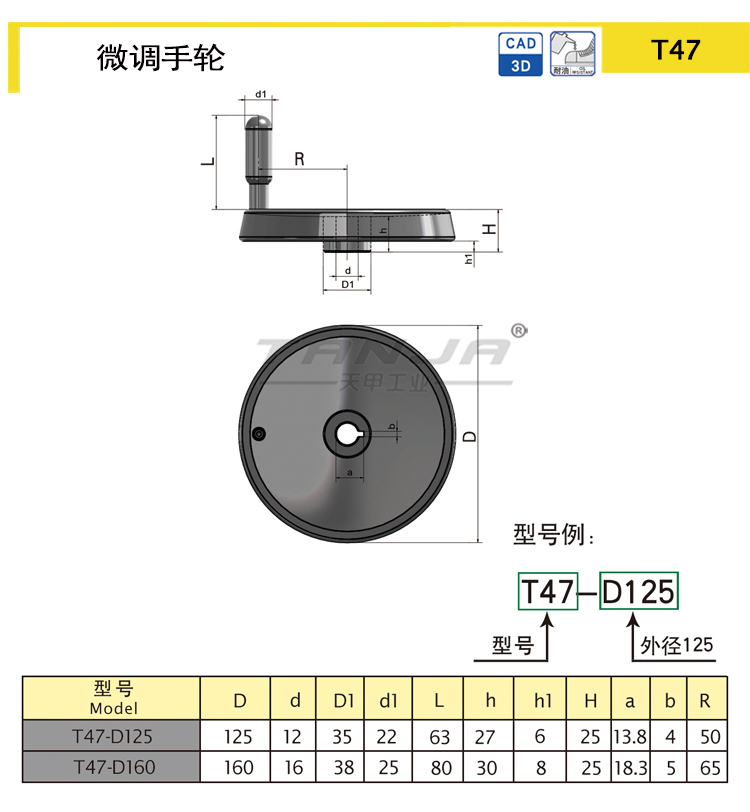

Product size diagram
Product size and properties
| Model Number | H  | L1 | Material | B | D1 | M | R | H2 | d1 | d2 | h | d | D | L | h1 | r | s | a | b | I | d4 | f |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T47-D125 | 25 | / | SUS304 | / | 35 | / | 50 | / | 22 | / | 6 | 12 | 125 | 63 | 6 | / | / | 13.8 | 4 | / | / | / | |
| T47-D160 | 25 | / | SUS304 | / | 38 | / | 65 | / | 25 | / | 8 | 16 | 160 | 80 | 8 | / | / | 18.3 | 5 | / | / | / |
characteristic
Resistant to chemical solvent,greasy dirt,special use of fine adjustment hand wheel
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name

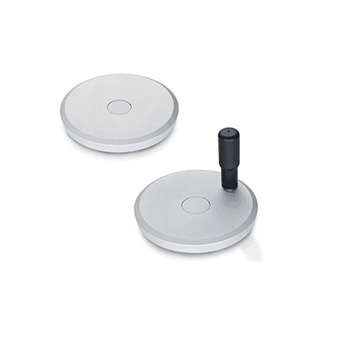

Adjustable Hand Wheel
Adjustable Hand Wheel
