Leveling Feet

R01

Leveling Feet

SUS304

application：Food machinery, Packaging machinery, Testing instruments, Medical equipment, etc.

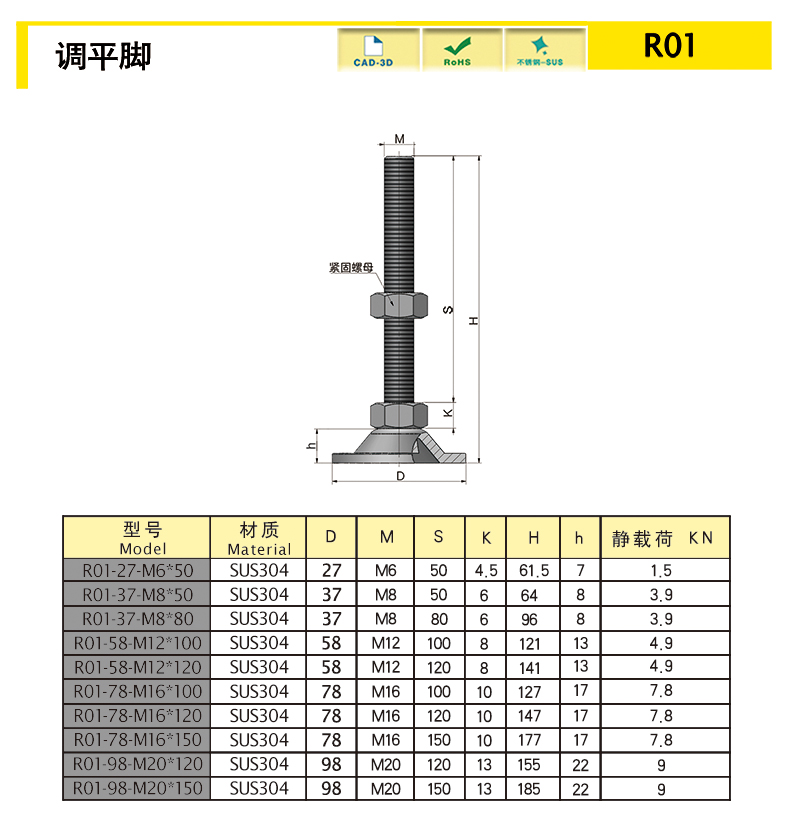

Product size diagram

Product size and properties

Model Number	Material	Diameter	M	S	K	H	h	h1	H1	Weight (g)	Static Load (KN)
R01-27-M6×50	SUS304	27	M6	50	4.5	61.5	7	/	/	/	1.5
R01-37-M8×50	SUS304	37	M8	50	6	64	7	/	/	/	3.9
R01-37-M8×80	SUS304	37	M8	80	6	96	7	/	/	/	3.9
R01-58-M12×100	SUS304	58	M12	100	8	121	13	/	/	/	4.9
R01-58-M12×120	SUS304	58	M12	120	8	141	13	/	/	/	4.9
R01-78-M16×100	SUS304	78	M16	100	10	127	17	/	/	/	7.8
R01-78-M16×120	SUS304	78	M16	120	10	147	17	/	/	/	7.8
R01-78-M16×150	SUS304	78	M16	150	10	177	17	/	/	/	7.8
R01-98-M20×120	SUS304	98	M20	120	13	155	22	/	/	/	9
R01-98-M20×150	SUS304	98	M20	150	13	185	22	/	/	/	9

characteristic

Extremely smooth screw,install quickly.
Anti-rust, anti-skid, alkaliresistant, wear-resistantand oil-resistant.

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
