Universal Leveling Feet

R07

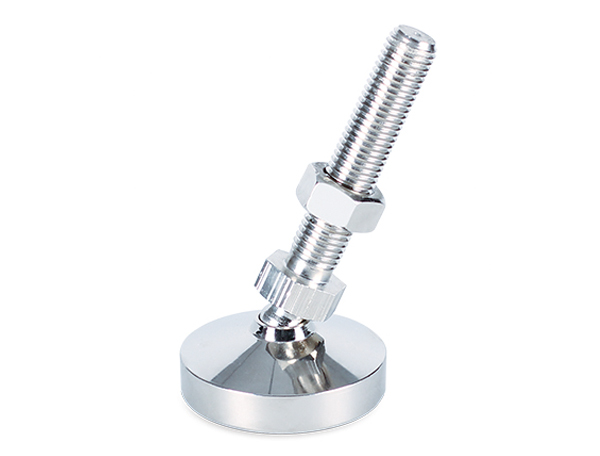

Universal Leveling Feet

SUS304

application：Food machinery, Packaging machinery, Testing instruments, Medical equipment, etc.

catalogue CAD data

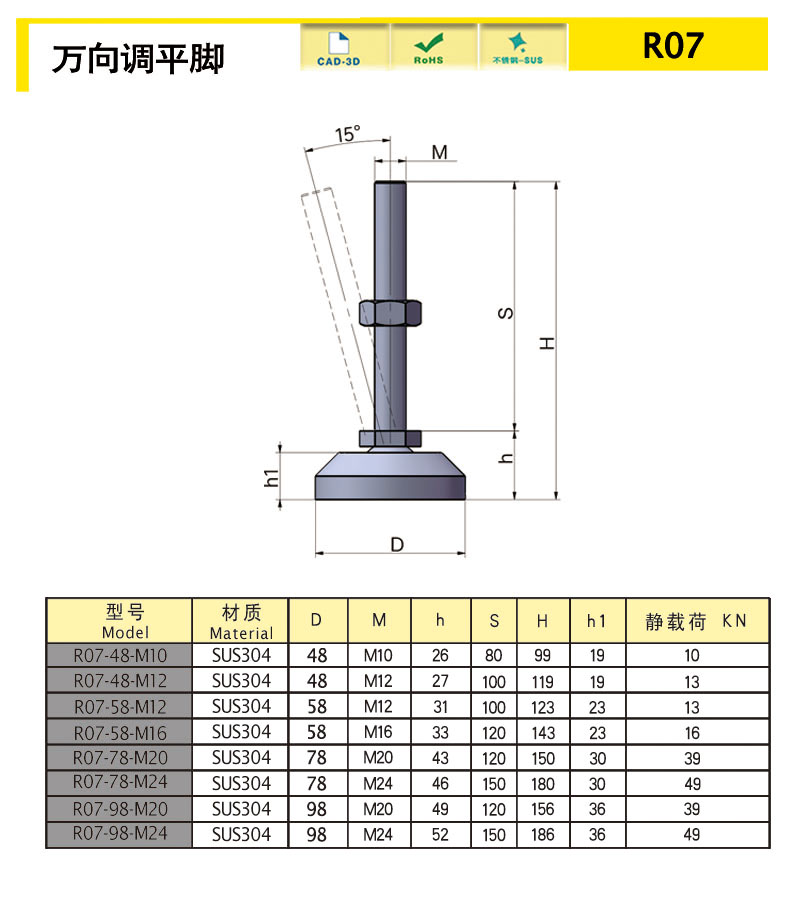

Product size diagram

Product size and properties

Model Number	Material	Diameter	M	S	K	H	h	h1	H1	Weight (g)	Static Load (KN)
R07-48-M10	SUS304	48	M10	80	/	99	26	19	/	/	10
R07-48-M12	SUS304	48	M12	100	/	119	27	19	/	/	13
R07-58-M12	SUS304	58	M12	100	/	123	31	23	/	/	13
R07-58-M16	SUS304	58	M16	120	/	143	33	23	/	/	16
R07-78-M20	SUS304	78	M20	120	/	150	43	30	/	/	39
R07-78-M24	SUS304	78	M24	150	/	180	46	30	/	/	49
R07-98-M20	SUS304	98	M20	120	/	156	49	36	/	/	39
R07-98-M24	SUS304	98	M24	150	/	186	52	36	/	/	49

characteristic

Extremely smooth screw,install quickly.
Screw provides a 15-degree universal adjustment, remove the angular tolerance, making the machine equipment more stable.

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

Product Name
Universal Leveling Feet

More information

If you have more technical advice，Please call
0535-6217008-801
