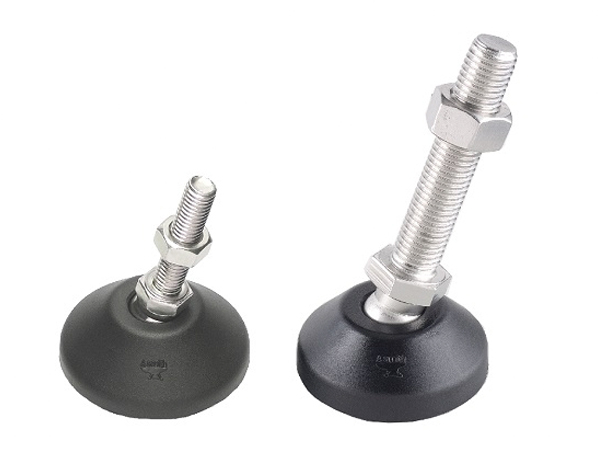

Nylon Universal Leveling Feet

R10

application：Food machinery, Packaging machinery, Testing instruments, Medical equipment, etc.

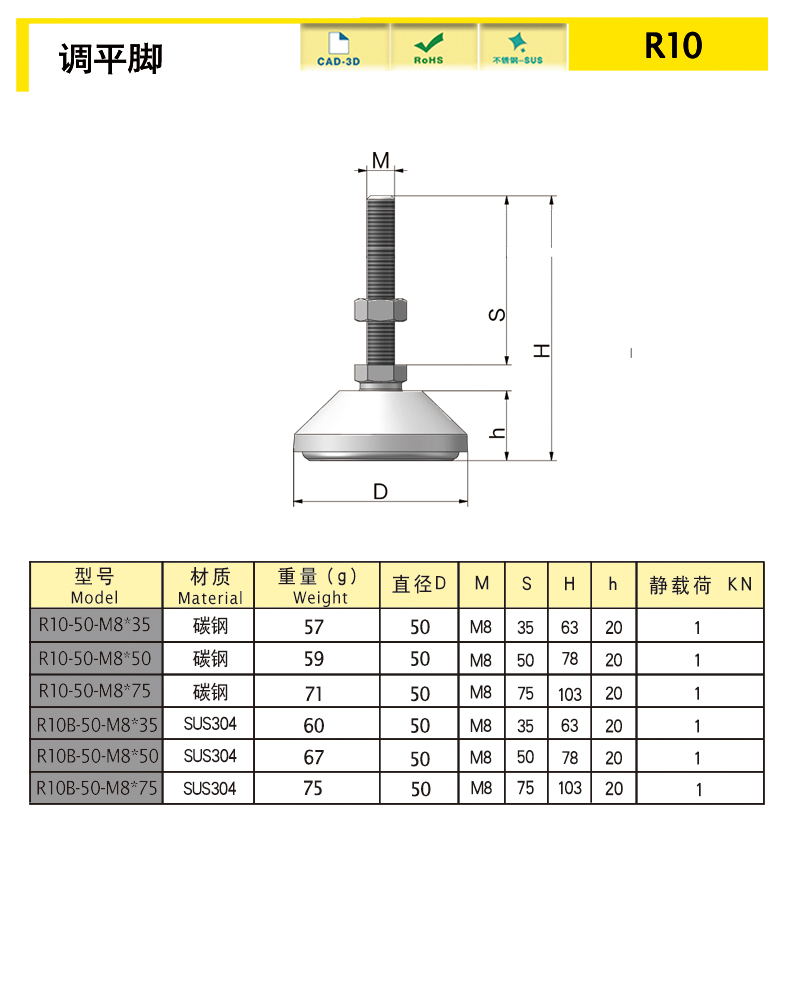

Product size diagram

Product size and properties

Model Number	Material	Diameter	M	S	K	H	h	h1	H1	Weight (g)	Static Load (KN)
R10-50-M8×35	Carbon Steel	32	M8	35	/	63	20	/	/	57	1
R10-50-M8×50	Carbon Steel	32	M8	50	/	78	20	/	/	59	1
R10-50-M8×75	Carbon Steel	40	M8	75	/	103	20	/	/	71	1
R10B-50-M8×35	SUS304	50	M8	35	/	63	20	/	/	60	1
R10B-50-M8×50	SUS304	50	M8	75	/	103	20	/	/	67	1
R10B-50-M8×75	SUS304	50	M8	75	/	103	20	/	/	75	1

characteristic

Material-Seat: PA

Material-Screw:SUS304

Material-Pad: Rubber (NBR), oil resistant, alkali resistant, heat resistant 130℃.

Extremely smooth screw,install quickly.

Screw provides a 15-degree universal adjustment, remove the angular tolerance, making the machine equipment more stable.

Available services

1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging

Product Name
Nylon Universal Leveling Feet
