Product size diagram
Product size and properties
| Model Number | Material | Diameter | M | S | K | H | h | h1 | H1 | Weight (g) | Static Load (KN) | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R16-60-M12x100 | SPCC/SUS304 | 60 | M12 | 100 | / | 140 | 25 | / | / | / | 7 | |
| R16-60-M12x120 | SPCC/SUS304 | 60 | M12 | 120 | / | 160 | 25 | / | / | / | 7 | |
| R16-60-M12x150 | SPCC/SUS304 | 60 | M12 | 150 | / | 181 | 25 | / | / | / | 7 | |
| R16-60-M16x100 | SPCC/SUS304 | 60 | M16 | 100 | / | 131 | 25 | / | / | / | 10 | |
| R16-60-M16x120 | SPCC/SUS304 | 60 | M16 | 120 | / | 151 | 25 | / | / | / | 10 | |
| R16-60-M16x150 | SPCC/SUS304 | 60 | M16 | 150 | / | 181 | 25 | / | / | / | 10 | |
| R16-80-M16x100 | SPCC/SUS304 | 80 | M16 | 100 | / | 140 | 28 | / | / | / | 10 |
 |
| R16-80-M16x120 | SPCC/SUS304 | 80 | M16 | 120 | / | 160 | 28 | / | / | / | 10 | |
| R16-80-M16x150 | SPCC/SUS304 | 80 | M16 | 150 | / | 190 | 28 | / | / | / | 10 | |
| R16-80-M20x100 | SPCC/SUS304 | 80 | M20 | 100 | / | 140 | 28 | / | / | / | 20 | |
| R16-80-M20x120 | SPCC/SUS304 | 80 | M20 | 120 | / | 160 | 28 | / | / | / | 20 | |
| R16-80-M20x150 | SPCC/SUS304 | 80 | M20 | 150 | / | 190 | 28 | / | / | / | 20 |
characteristic
Seat/Screw: SPCC/SUS 304
Pad: Rubber (NBR),Flame retardant, non-toxic
Shockproof Anti-rust, anti-skid, alkali-resistant, wear-resistant and oil-resistant.
Available services
Product Name

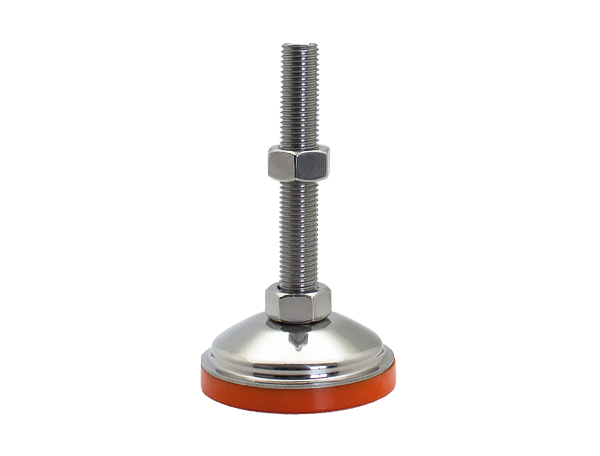

Leveling Feet
Leveling Feet
More information
If you have more technical advice，Please call0535-6217008-801
