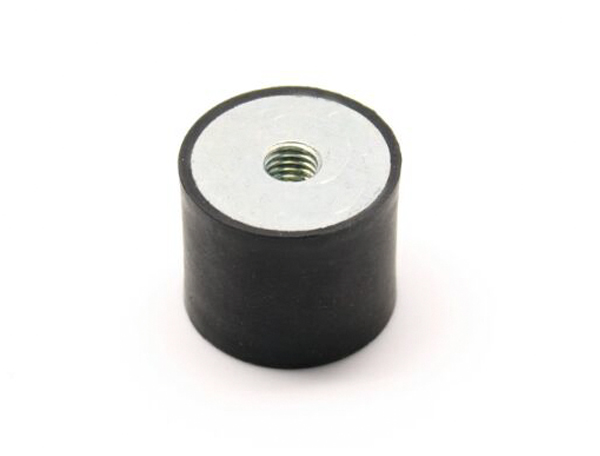

Standard Rubber Shock Absorber

J04

Standard Rubber Shock Absorber

Rubber

application:Genset Compressors electro motor Fans/Air Conditioners Pump ndustrial and mining machinery etc

catalogue CAD data

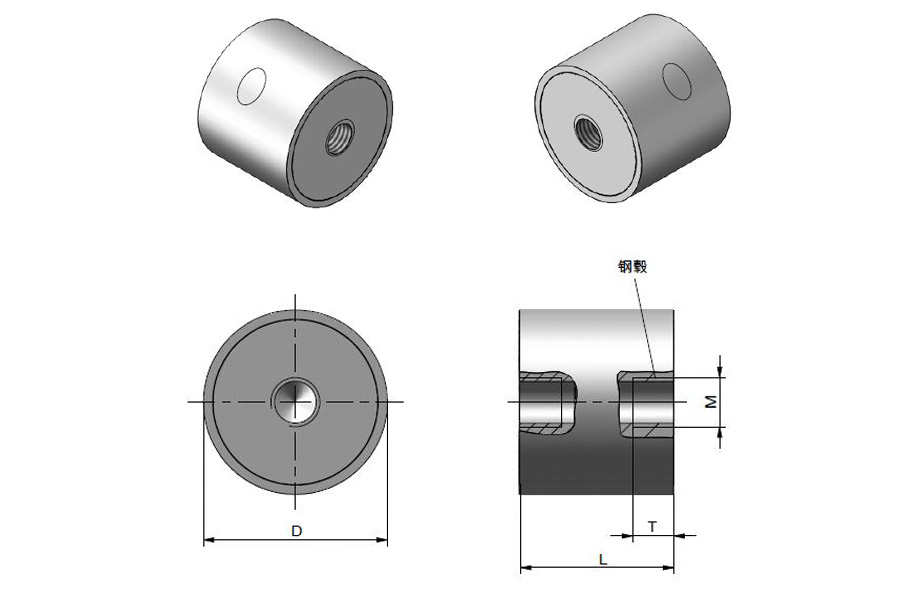

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomD4 bottomLength bottomHeight bottomT bottomM bottomA bottomB bottomC bottomD5 bottomK bottomMaximum load (N) bottomOptimum compression(mm) bottom 3D DRAWINGS
J04-10-10 Rubber 10 / 10 / 4 M4 / / / / / 85 2
J04-15-15 Rubber 15 / 15 / 4 M4 / / / / / 130 2
J04-15-20 Rubber 15 / 20 / 4 M5 / / / / / 150 2
J04-20-15 Rubber 20 / 15 / 6 M6 / / / / / 350 2
J04-20-20 Rubber 20 / 20 / 6 M6 / / / / / 250 2
J04-20-25 Rubber 20 / 25 / 6 M6 / / / / / 310 2
J04-25-20 Rubber 25 / 20 / 6 M6 / / / / / 600 2
J04-25-25 Rubber 25 / 25 / 6 M6 / / / / / 525 2
J04-25-30 Rubber 25 / 30 / 8 M6 / / / / / 570 2.5
J04-30-30 Rubber 30 / 30 / 8 M8 / / / / / 850 2.5
J04-30-40 Rubber 30 / 40 / 8 M8 / / / / / 750 2.5
J04-40-30 Rubber 40 / 30 / 8 M8 / / / / / 1530 2.5
J04-40-40 Rubber 40 / 40 / 8 M8 / / / / / 1630 3
J04-50-30 Rubber 50 / 30 / 10 M10 / / / / / 2565 2.5
J04-50-40 Rubber 50 / 40 / 10 M10 / / / / / 2440 3
J04-50-50 Rubber 50 / 50 / 10 M10 / / / / / 2220 3
J04-60-30 Rubber 60 / 30 / 10 M12 / / / / / 3395 2.5
J04-60-40 Rubber 60 / 40 / 10 M12 / / / / / 3295 2.5
J04-70-45 Rubber 70 / 45 / 10 M12 / / / / / 3995 3
J04-75-40 Rubber 75 / 40 / 12 M12 / / / / / 4645 3
J04-75-55 Rubber 75 / 55 / 12 M10 / / / / / 4495 3.5
J04-100-40 Rubber 100 / 40 / 16 M16 / / / / / 7995 3
J04-100-55 Rubber 100 / 55 / 16 M16 / / / / / 7695 3.5
characteristic

Feature: Available for centrifugal machine, Fans, kinds of pumps,electric motorfrequency changer and Compressors such kinds of machine with speed more than 1200rpm.
