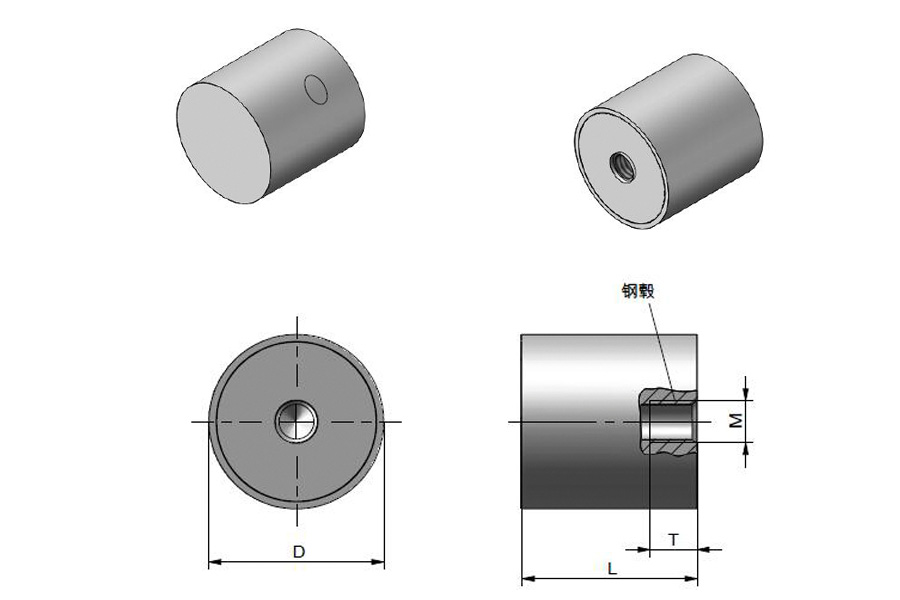

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | D4 | Length | Height | T | M | A | B | C | D5 | K | Maximum load (N) | Optimum compression（mm） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J05-10-10 | Rubber | 10 | / | 10 | / | 4 | M4 | / | / | / | / | / | 85 | 2 | |
| J05-15-10 | Rubber | 15 | / | 10 | / | 4 | M4 | / | / | / | / | / | 195 | 2 | |
| J05-15-15 | Rubber | 15 | / | 15 | / | 4 | M4 | / | / | / | / | / | 130 | 2 | |
| J05-15-20 | Rubber | 15 | / | 20 | / | 4 | M4 | / | / | / | / | / | 150 | 2 | |
| J05-20-15 | Rubber | 20 | / | 15 | / | 6 | M6 | / | / | / | / | / | 350 | 2 | |
| J05-20-20 | Rubber | 20 | / | 20 | / | 6 | M6 | / | / | / | / | / | 250 | 2 | |
| J05-25-20 | Rubber | 25 | / | 20 | / | 6 | M6 | / | / | / | / | / | 600 | 2 | |
| J05-25-25 | Rubber | 25 | / | 25 | / | 6 | M6 | / | / | / | / | / | 525 | 2 |
 |
| J05-30-30 | Rubber | 30 | / | 30 | / | 8 | M8 | / | / | / | / | / | 850 | 2.5 | |
| J05-30-40 | Rubber | 30 | / | 40 | / | 8 | M8 | / | / | / | / | / | 750 | 2.5 | |
| J05-40-30 | Rubber | 40 | / | 30 | / | 8 | M8 | / | / | / | / | / | 1530 | 2.5 | |
| J05-40-40 | Rubber | 40 | / | 40 | / | 8 | M8 | / | / | / | / | / | 1630 | 3 | |
| J05-50-30 | Rubber | 50 | / | 30 | / | 10 | M10 | / | / | / | / | / | 2565 | 2.5 | |
| J05-50-40 | Rubber | 50 | / | 40 | / | 10 | M10 | / | / | / | / | / | 2440 | 3 | |
| J05-50-50 | Rubber | 50 | / | 50 | / | 10 | M10 | / | / | / | / | / | 2220 | 3 | |
| J05-60-30 | Rubber | 60 | / | 30 | / | 10 | M12 | / | / | / | / | / | 3395 | 2.5 | |
| J05-60-40 | Rubber | 60 | / | 40 | / | 10 | M12 | / | / | / | / | / | 3295 | 2.5 | |
| J05-75-40 | Rubber | 75 | / | 40 | / | 12 | M12 | / | / | / | / | / | 4645 | 3 | |
| J05-75-55 | Rubber | 75 | / | 55 | / | 12 | M12 | / | / | / | / | / | 4495 | 3.5 | |
| J05-100-40 | Rubber | 100 | / | 10 | / | 16 | M16 | / | / | / | / | / | 7995 | 3 | |
| J05-100-55 | Rubber | 100 | / | 55 | / | 16 | M16 | / | / | / | / | / | 7695 | 3.5 |
characteristic
Feature: Available for centrifugal machine, Fans, kinds of pumps,electric motorfrequency changer and Compressors such kinds of machine with speed more than 1200rpm.
Available services
Product Name

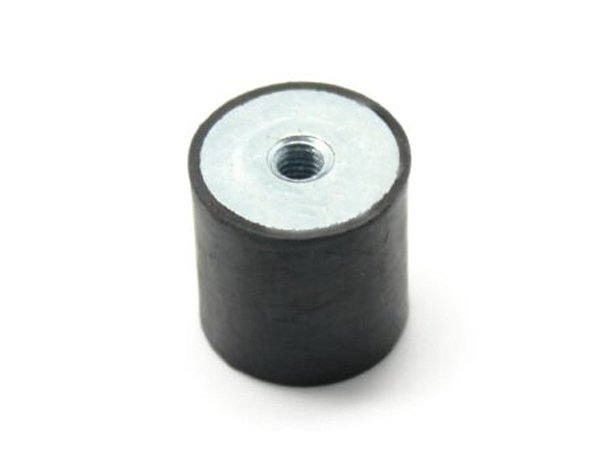

Standard Rubber Shock Absorber
Standard Rubber Shock Absorber
