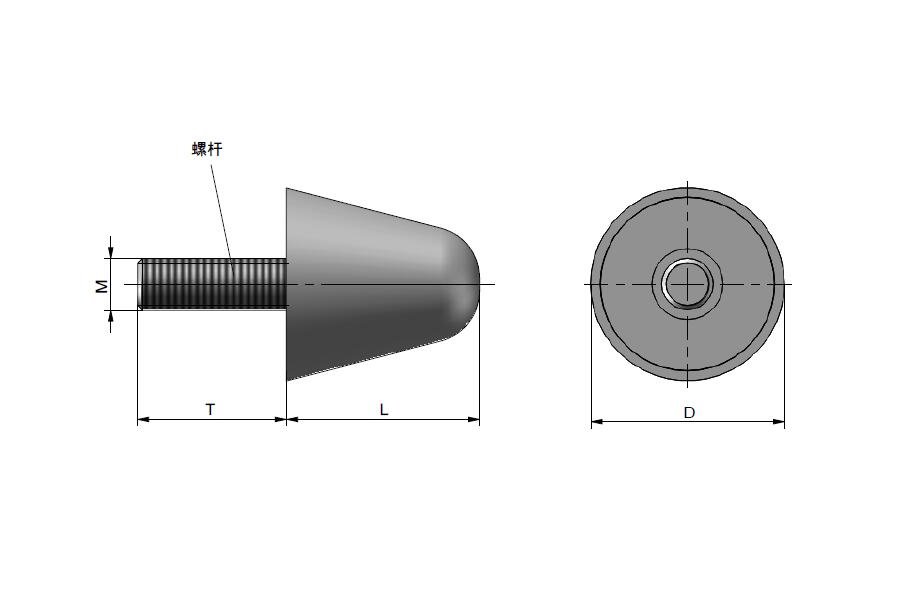

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | D4 | Length | Height | T | M | A | B | C | D5 | K | Maximum load (N) | Optimum compression（mm） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J06-20-24 | Rubber | 20 | / | 24 | / | 18 | M6 | / | / | / | / | / | 95 | / | |
| J06-30-30 | Rubber | 30 | / | 30 | / | 18 | M8 | / | / | / | / | / | 145 | / | |
| J06-30-36 | Rubber | 30 | / | 36 | / | 20 | M8 | / | / | / | / | / | 195 | / |
 |
| J06-50-61 | Rubber | 50 | / | 61 | / | 28 | M8 | / | / | / | / | / | 745 | / |
characteristic
perfect combination of rubber and metal parts. realize better shock absorption
Available services
Product Name

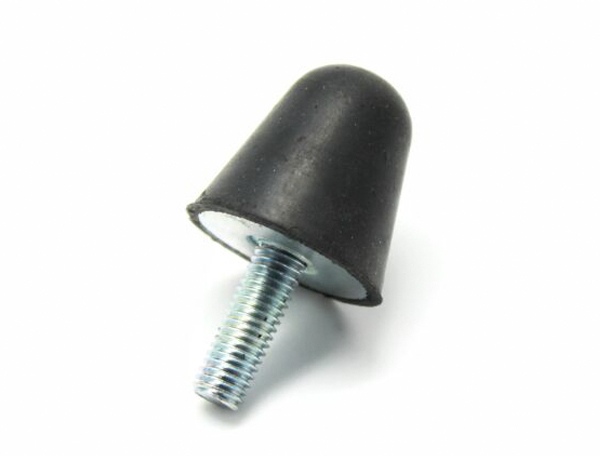

Pad Type Rubber Damper
Pad Type Rubber Damper
More information
If you have more technical advice，Please call0535-6217008-801
