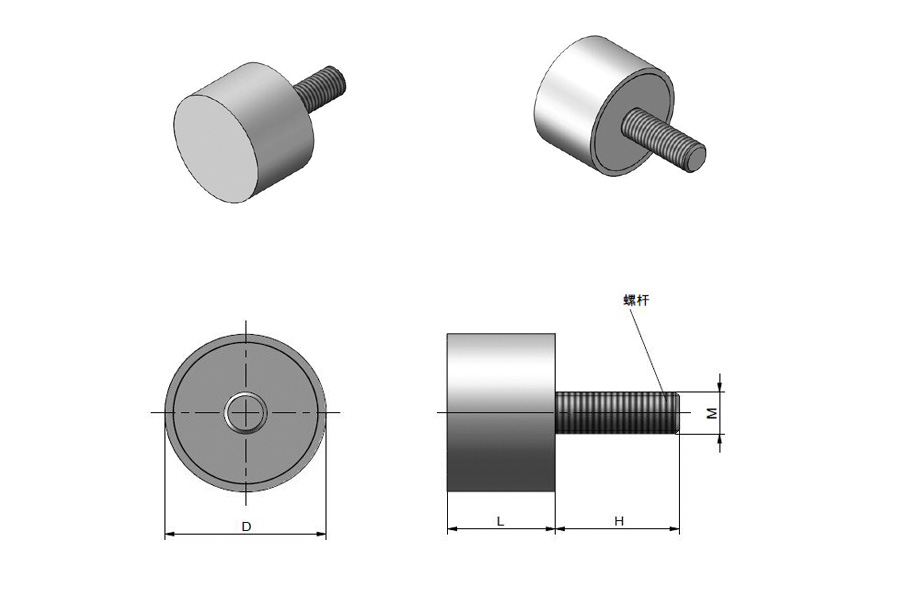

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | D4 | Length | Height | T | M | A | B | C | D5 | K | Maximum load (N) | Optimum compression（mm） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J03-10-10 | Rubber | 10 | / | 10 | 10 | / | M4 | / | / | / | / | / | 55 | 2 | |
| J03-15-10 | Rubber | 15 | / | 10 | 10 | / | M5 | / | / | / | / | / | 150 | 2 | |
| J03-15-15 | Rubber | 15 | / | 15 | 10 | / | M5 | / | / | / | / | / | 235 | 2 | |
| J03-20-10 | Rubber | 20 | / | 10 | 18 | / | M6 | / | / | / | / | / | 310 | 1.5 | |
| J03-20-15 | Rubber | 20 | / | 15 | 18 | / | M6 | / | / | / | / | / | 285 | 2 | |
| J03-20-20 | Rubber | 20 | / | 20 | 18 | / | M6 | / | / | / | / | / | 300 | 2 | |
| J03-20-30 | Rubber | 20 | / | 30 | 18 | / | M6 | / | / | / | / | / | 280 | 2.5 | |
| J03-25-15 | Rubber | 25 | / | 15 | 18 | / | M6 | / | / | / | / | / | 605 | 2 | |
| J03-25-20 | Rubber | 25 | / | 20 | 18 | / | M6 | / | / | / | / | / | 555 | 2 | |
| J03-25-25 | Rubber | 25 | / | 25 | 18 | / | M6 | / | / | / | / | / | 505 | 2.5 | |
| J03-30-15 | Rubber | 30 | / | 15 | 20 | / | M8 | / | / | / | / | / | 930 | 2 | |
| J03-30-20 | Rubber | 30 | / | 20 | 20 | / | M8 | / | / | / | / | / | 920 | 2 |
 |
| J03-30-25 | Rubber | 30 | / | 25 | 20 | / | M8 | / | / | / | / | / | 810 | 2 | |
| J03-30-30 | Rubber | 30 | / | 30 | 20 | / | M8 | / | / | / | / | / | 870 | 2.5 | |
| J03-40-20 | Rubber | 40 | / | 20 | 23 | / | M8 | / | / | / | / | / | 1230 | 2 | |
| J03-40-30 | Rubber | 40 | / | 3 | 23 | / | M8 | / | / | / | / | / | 1595 | 2.5 | |
| J03-40-40 | Rubber | 40 | / | 40 | 23 | / | M8 | / | / | / | / | / | 1815 | 3 | |
| J03-50-20 | Rubber | 50 | / | 20 | 28 | / | M10 | / | / | / | / | / | 2580 | 2 | |
| J03-50-30 | Rubber | 50 | / | 30 | 28 | / | M10 | / | / | / | / | / | 2450 | 2.5 | |
| J03-50-40 | Rubber | 50 | / | 40 | 28 | / | M10 | / | / | / | / | / | 2460 | 3 | |
| J03-60-20 | Rubber | 60 | / | 20 | 28 | / | M12 | / | / | / | / | / | 3625 | 2 | |
| J03-60-40 | Rubber | 60 | / | 40 | 28 | / | M12 | / | / | / | / | / | 3395 | 2.5 | |
| J03-75-40 | Rubber | 75 | / | 40 | 37 | / | M12 | / | / | / | / | / | 4495 | 3 | |
| J03-75-50 | Rubber | 75 | / | 50 | 37 | / | M12 | / | / | / | / | / | 4395 | 3 | |
| J03-100-40 | Rubber | 100 | / | 40 | 41 | / | M16 | / | / | / | / | / | 8095 | 3 | |
| J03-100-50 | Rubber | 100 | / | 50 | 41 | / | M16 | / | / | / | / | / | 7995 | 3 | |
| J03-100-60 | Rubber | 100 | / | 60 | 41 | / | M16 | / | / | / | / | / | 7795 | 4 |
characteristic
Steel with zinc plated
Available for centrifugal machine, Fans ,kinds of pumps,electric motorfrequency changer and Compressors such kinds of machine with speed more than 1200rpm.
Radial elasticity greater than axial elasticity
Easy to install；Simple and economical
Available services
Product Name
Rubber Buffer
Rubber Buffer
More information
If you have more technical advice，Please call0535-6217008-801
