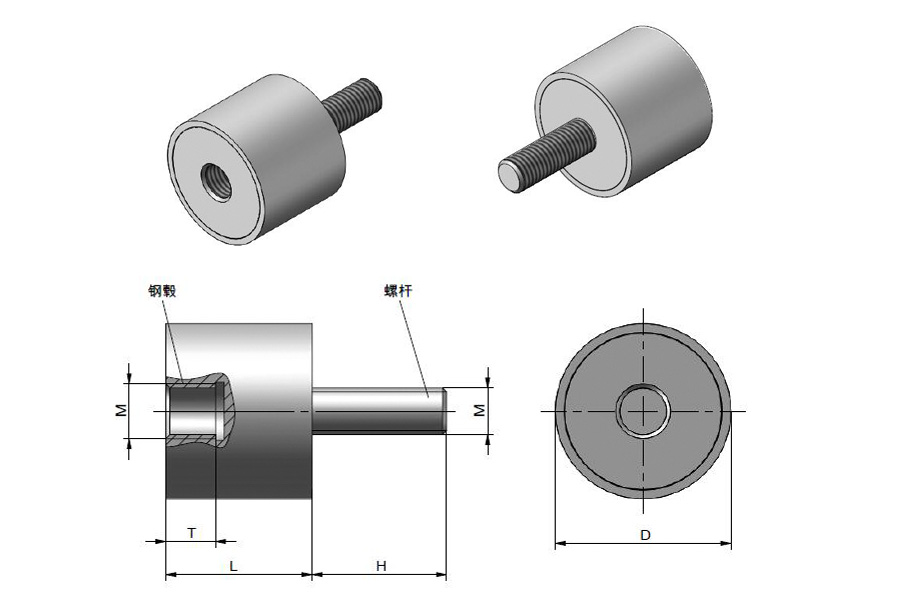

Product size diagram
Product size and properties
| Model Number | Material  | Diameter | D4 | Length | Height | T | M | A | B | C | D5 | K | Maximum load (N) | Optimum compression（mm） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J02-8-8 | Rubber | 8 | / | 8 | 6 | 3 | M3 | / | / | / | / | / | 70 | 1.5 | |
| J02-10-10 | Rubber | 10 | / | 10 | 10 | 4 | M4 | / | / | / | / | / | 85 | 2 | |
| J02-10-15 | Rubber | 10 | / | 15 | 10 | 4 | M4 | / | / | / | / | / | 60 | 2 | |
| J02-15-10 | Rubber | 15 | / | 10 | 10 | 4 | M5 | / | / | / | / | / | 195 | 2 | |
| J02-15-15 | Rubber | 15 | / | 15 | 10 | 4 | M5 | / | / | / | / | / | 125 | 2 | |
| J02-15-20 | Rubber | 15 | / | 20 | 10 | 4 | M5 | / | / | / | / | / | 145 | 2 | |
| J02-20-15 | Rubber | 20 | / | 15 | 18 | 6 | M6 | / | / | / | / | / | 350 | 2 | |
| J02-20-20 | Rubber | 20 | / | 20 | 18 | 6 | M6 | / | / | / | / | / | 260 | 2 | |
| J02-20-25 | Rubber | 20 | / | 25 | 18 | 6 | M6 | / | / | / | / | / | 310 | 2 | |
| J02-25-15 | Rubber | 25 | / | 15 | 18 | 6 | M6 | / | / | / | / | / | 685 | 2 | |
| J02-25-20 | Rubber | 25 | / | 20 | 18 | 6 | M6 | / | / | / | / | / | 600 | 2 | |
| J02-25-30 | Rubber | 25 | / | 30 | 18 | 6 | M6 | / | / | / | / | / | 565 | 2.5 | |
| J02-30-15 | Rubber | 30 | / | 15 | 20 | 8 | M8 | / | / | / | / | / | 530 | 2 | |
| J02-30-30 | Rubber | 30 | / | 30 | 20 | 8 | M8 | / | / | / | / | / | 845 | 2.5 |
 |
| J02-40-20 | Rubber | 40 | / | 20 | 23 | 8 | M8 | / | / | / | / | / | 1505 | 2 | |
| J02-40-30 | Rubber | 40 | / | 30 | 23 | 8 | M8 | / | / | / | / | / | 1525 | 2.5 | |
| J02-40-40 | Rubber | 40 | / | 40 | 23 | 8 | M8 | / | / | / | / | / | 1625 | 3 | |
| J02-50-20 | Rubber | 50 | / | 20 | 28 | 10 | M10 | / | / | / | / | / | 3595 | 2 | |
| J02-50-30 | Rubber | 50 | / | 30 | 28 | 10 | M10 | / | / | / | / | / | 2570 | 2.5 | |
| J02-50-40 | Rubber | 50 | / | 40 | 28 | 10 | M10 | / | / | / | / | / | 2435 | 3 | |
| J02-50-50 | Rubber | 50 | / | 50 | 28 | 10 | M10 | / | / | / | / | / | 2195 | 3 | |
| J02-60-30 | Rubber | 60 | / | 30 | 28 | 10 | M12 | / | / | / | / | / | 3395 | 2.5 | |
| J02-60-40 | Rubber | 60 | / | 40 | 28 | 10 | M12 | / | / | / | / | / | 3325 | 2.5 | |
| J02-70-45 | Rubber | 70 | / | 45 | 27 | 10 | M10 | / | / | / | / | / | 3995 | 3 | |
| J02-75-40 | Rubber | 75 | / | 40 | 37 | 12 | M12 | / | / | / | / | / | 4595 | 3 | |
| J02-75-55 | Rubber | 75 | / | 55 | 37 | 12 | M12 | / | / | / | / | / | 4500 | 3.2 | |
| J02-100-40 | Rubber | 100 | / | 40 | 41 | 16 | M16 | / | / | / | / | / | 8795 | 3 | |
| J02-100-55 | Rubber | 100 | / | 55 | 41 | 16 | M16 | / | / | / | / | / | 7595 | 3.5 | |
| J02-100-75 | Rubber | 100 | / | 75 | 41 | 16 | M16 | / | / | / | / | / | 7095 | 4 |
characteristic
Steel with zinc plated
Available for centrifugal machine, Fans ,kinds of pumps,electric motorfrequency changer and Compressors such kinds of machine with speed more than 1200rpm.
Available services
Product Name

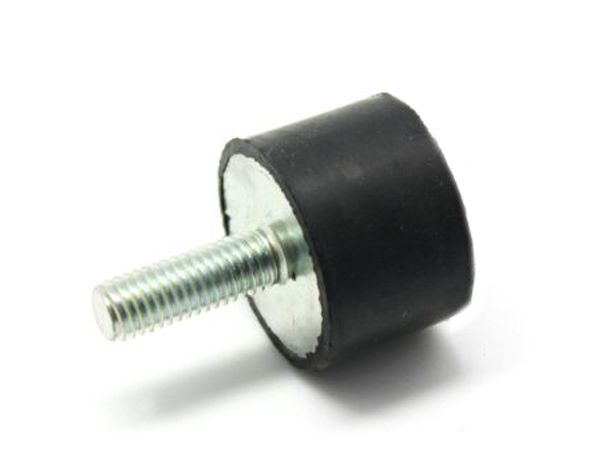

Standard Rubber Mount
Standard Rubber Mount
More information
If you have more technical advice，Please call0535-6217008-801
