Working mode: independent (i.e. locking upon closing the door after power outage, and triggering unlocking upon power on).

Unlock detection: X2 dual wire unidirectional, X4 four wire with feedback (unlock position detection).

Mechanical life: greater than 500000 times under design load conditions.

Electromagnet service life: greater than 1 million times under rated working conditions.

Self elastic design: Adjustable elasticity, suitable for doors weighing 0.5~4kg to self bounce.

Surface treatment: Electroplated electrophoretic paint (neutral smoke test for over 500 hours).

Safety: The locking hook can withstand a tensile force of 150Kg without significant permanent deformation; With shockproof and anti prying performance.

Environmental temperature: This product is suitable for high temperature+60 ° C and low temperature -40 ° C ambient temperatures.

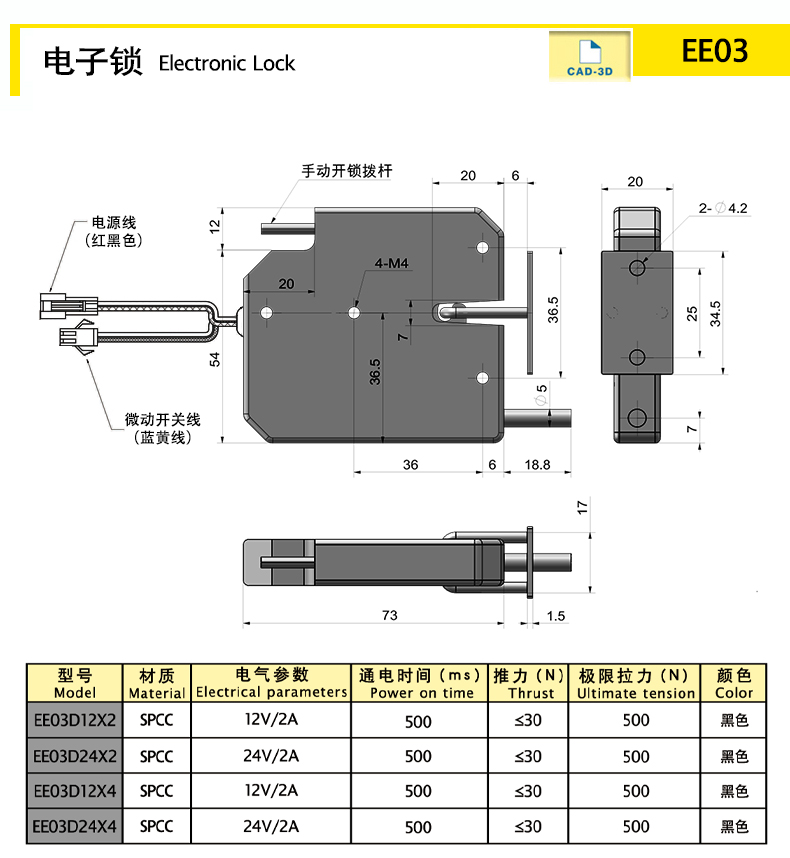

Installation: The product is small in size, easy to install, and has no distinction between left and right sides; And reserve a mechanical emergency unlocking position.

Using new technological materials such as memory metal titanium wire as the traction cable, the unlocking purpose is achieved by utilizing its thermal shrinkage and cold expansion characteristics.
Built in microswitch output contact conduction feedback signal, lock switch closed, unlock switch disconnected.
When the cabinet door is subjected to a tensile force of 50KG after being locked, there will be no opening or damage to the titanium wire lock. When subjected to knocking and vibration, the titanium wire lock will not open.
