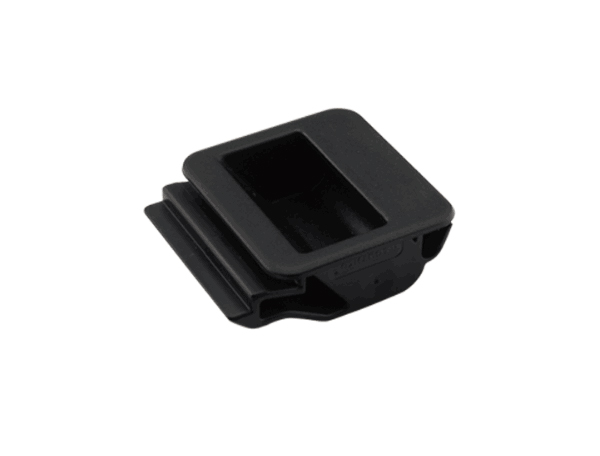

Sliding Type Handle

M45

Sliding Type Handle

Injection Molding Process

application：Instrument box,Detecting instrument

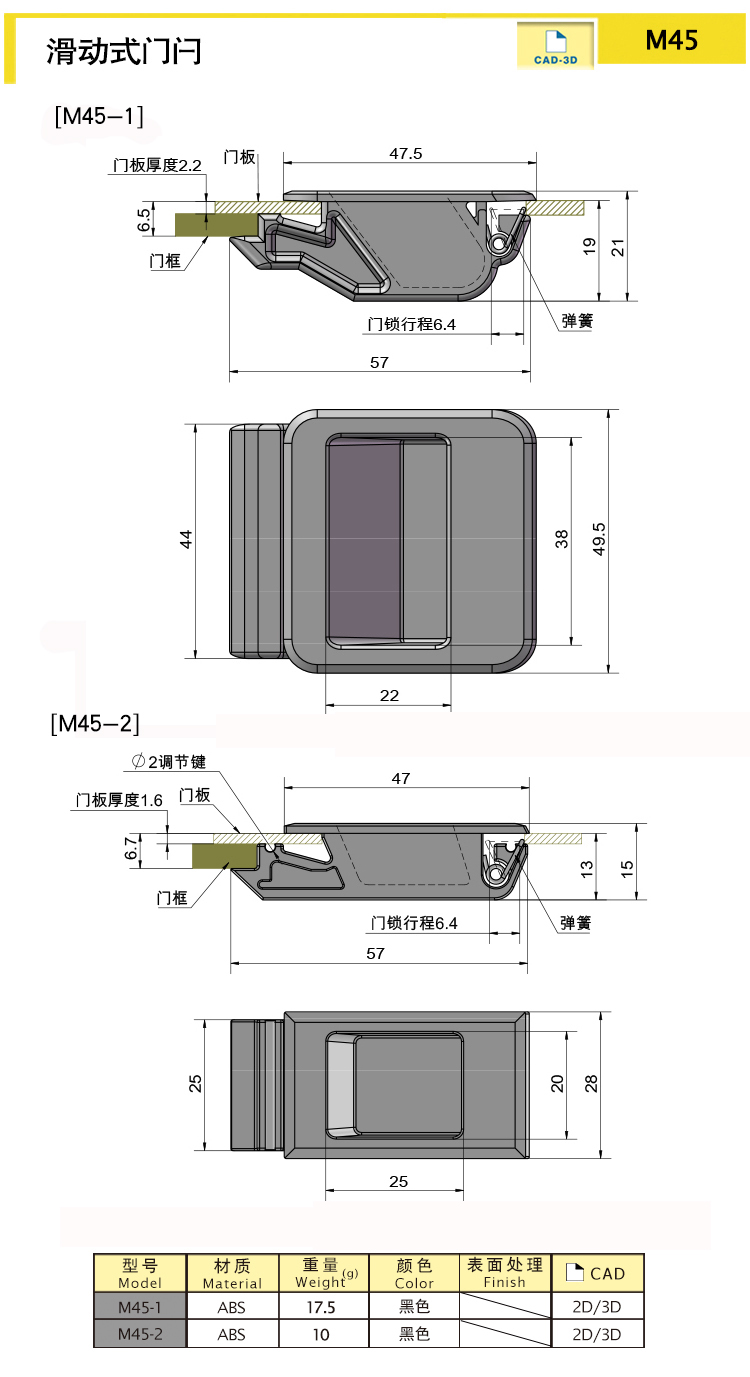

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)	3D DRAWINGS
M45-1	Paddle Handle Latch	ABS	57	Black	/	/	17.5
M45-2	Paddle Handle Latch	ABS	57	Black	/	/	10

characteristic

With slide open style,convenient to use,save space

Available services

Installation : Exposed Mount

Similar product recommendation

Side Door Lock

Concealed Handle

Product Name
Sliding Type Handle
