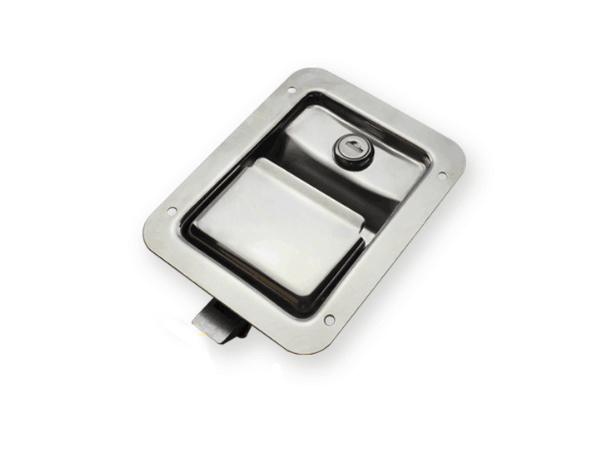

Paddle Handle Latch

M53

Paddle Handle Latch

Sheet Stamping

application：Engineering Vehicle，Special Vehicle, Generator set

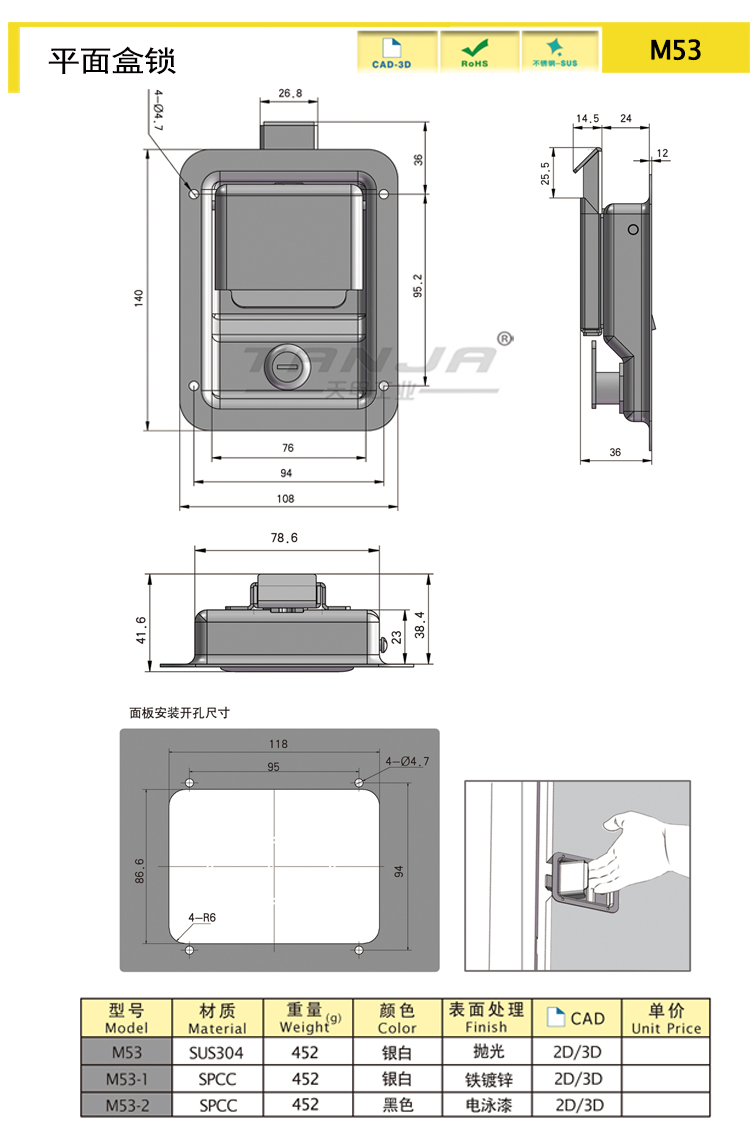

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)
M53B	Paddle Handle Latch	SUS304	132	Silver	Yes	Polished	452
M53-1	Paddle Handle Latch	SPCC	132	White	Yes	Zinc Plated	452
M53-2	Paddle Handle Latch	SPCC	132	Black	Yes	Electrophoretic Paint	452

characteristic

Easy to use & operate,with key cylinder,could instead of the lock,with sealing pad,favorable waterproof effect

Available services

Installation : Exposed Mount

Product Name
Paddle Handle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
