Panel Cabinet Lock

EF11

Panel Cabinet Lock

Zinc Alloy

application：Case, cabinet, electrical box, instrument box, etc

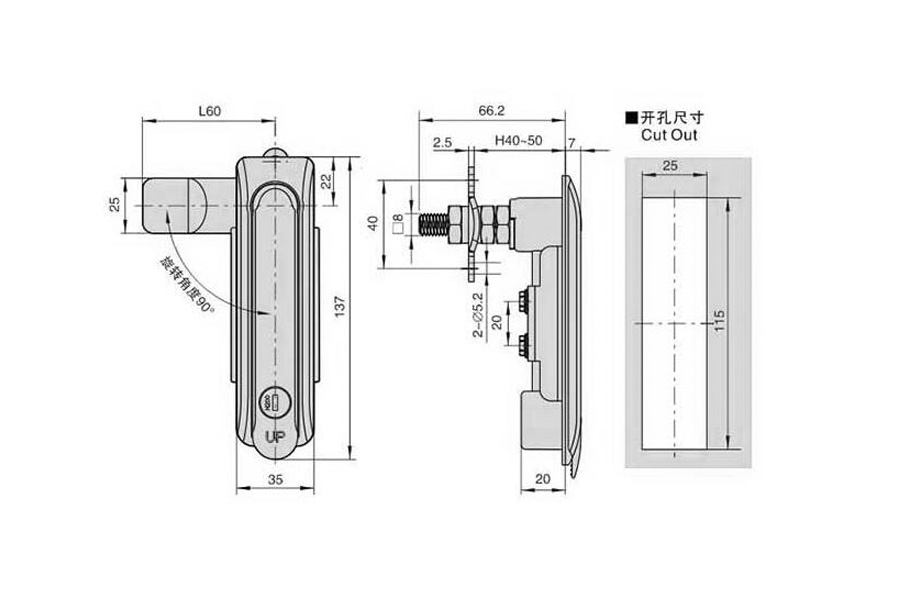

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)	3D DRAWINGS
EF11	Flat Lock	Zinc Alloy	137	Matte Black	Yes	Powder Coating	419

characteristic

Material: Zinc Alloy lock case, A3 lock tongue, mounting plate

Surface treatment:Spray opalescent lock case, spray matt black lock back, plated blue and white zinc lock plate and mounting plate

Applicable thickness of door plate: 1~2mm

Structure description: quick opening and easy installation; The adjusting nut can be used for all kinds of end range
