Panel Cabinet Lock

EF09

Panel Cabinet Lock

Zinc Alloy

application：Case, cabinet, electrical box, instrument box, etc

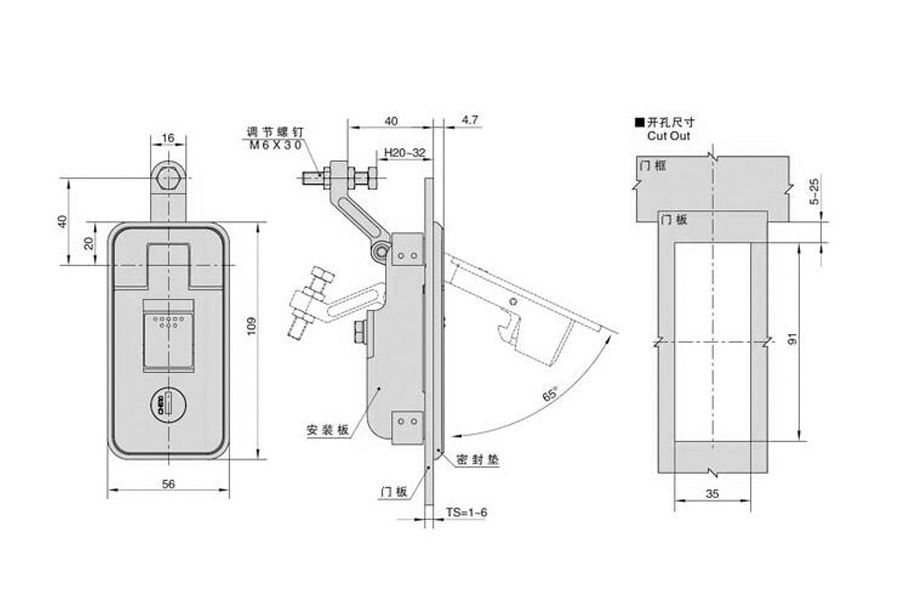

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)	3D DRAWINGS
EF09-1	Flat Lock	Zinc Alloy	109	Bright Chrome	Yes	Chrome Plated	537
EF09-2	Flat Lock	Zinc Alloy	109	Matte Black	Yes	Powder Coating	537

characteristic

Material:Zinc alloy lock case, lock back,button,positioning bar,A3 mounting plate

Surface treatment:Bright chrome plated, sandblasted black

Structural function: quick opening, convenient and quick installation, adjusting nut is applicable to all kinds of end range

Applicable thickness of door plate: 1-6mm.
