Panel Cabinet Lock

EF07

Panel Cabinet Lock

Zinc Alloy

application：Case, cabinet, electrical box, instrument box, etc

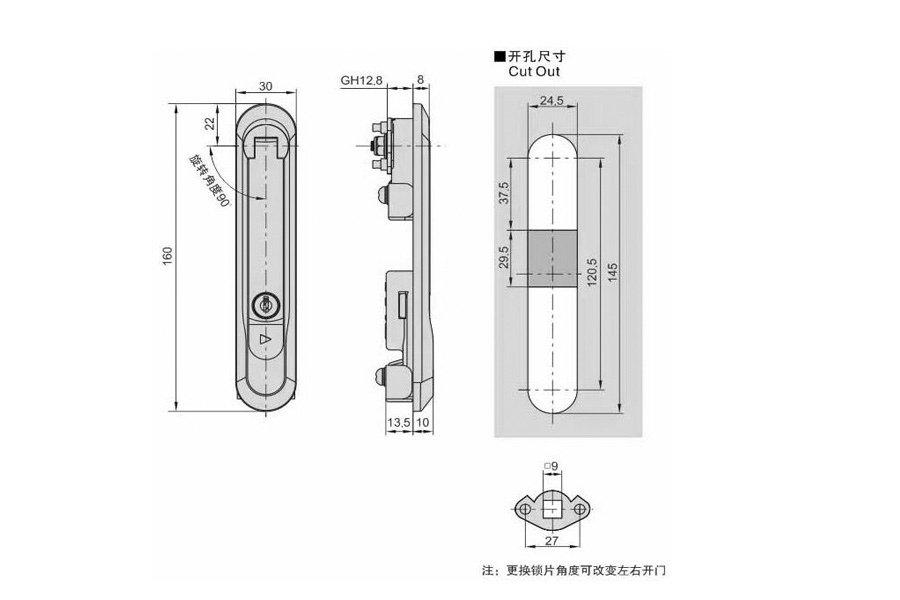

Product size diagram

Product size and properties

Model Number	Function	Material	Length（mm）	Color	With Key	Finish	Weight (g)	3D DRAWINGS
EF07	Flat Lock	Zinc Alloy	160	Silver	Yes	Chrome Plated	188

characteristic

Material: ABS lock case,zinc alloy lock back,A3 lock plated,mounting plate

Surface treatment: Gray spray paint

Applicable plate thickness: 1~2.5mm

Note: the locking plate is 9 x 9
